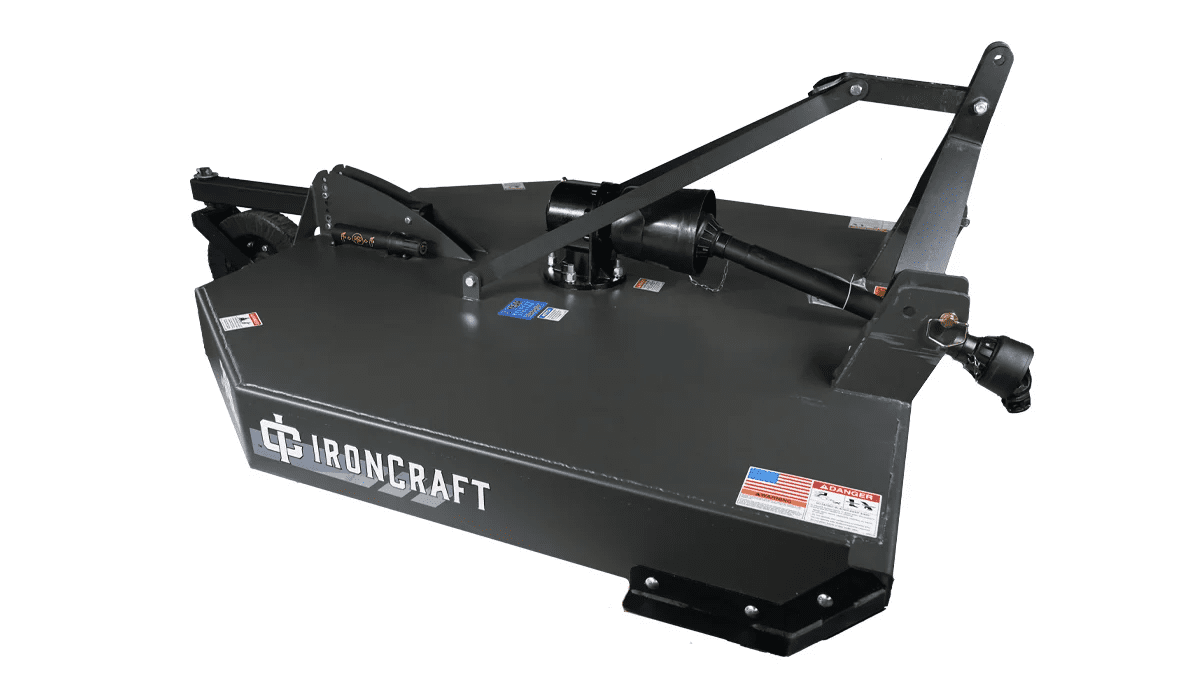

IronCraft 300 Series: 5′ Medium-Duty Smooth-Top Cutters WO/CHAINS

IronCraft 300 Series: 5′ Medium-Duty Smooth-Top Cutters WO/CHAINS

The IronCraft 300 Series is engineered for versatile land management, bridging the gap between standard maintenance and heavy-duty clearing. Designed to handle weeds, thick grass, and brush up to 2” in diameter, these cutters are the perfect match for tractors ranging from 32 to 90 PTO horsepower.

Available in 60” (5′) and 72” (6′) working widths, the 300 Series features a smooth-top deck design. This innovation prevents debris and water from pooling, significantly reducing rust and making post-job cleanup effortless.

Key Performance & Safety Features

• Impact Protection: Dual free-swinging blades on a single spindle reduce shock when hitting stationary objects.
• Driveline Security: Standard slip clutch protection and series 4 PTO drive shaft ensure gearbox longevity.
• Robust Build: Constructed with a 10-gauge steel deck and 1/2″ plate blade holders for maximum durability.

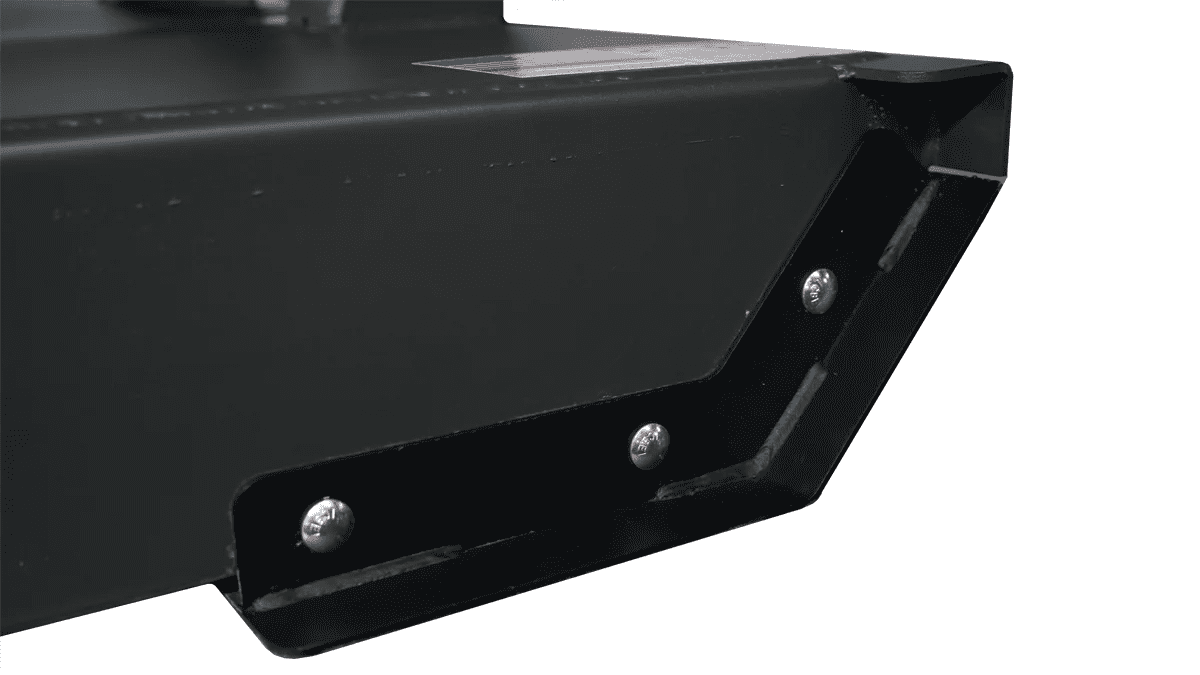

• Low Maintenance: Features replaceable skid shoes and a greaseable hub for the 15″ laminated tailwheel.

Technical Specifications (Model 305)

• Working Width: 60″ (5 Feet)
• HP Requirement: 32 – 90 PTO HP
• Cutting Capacity: Up to 2″ diameter material
• Deck Thickness: Heavy-duty 10 GA steel

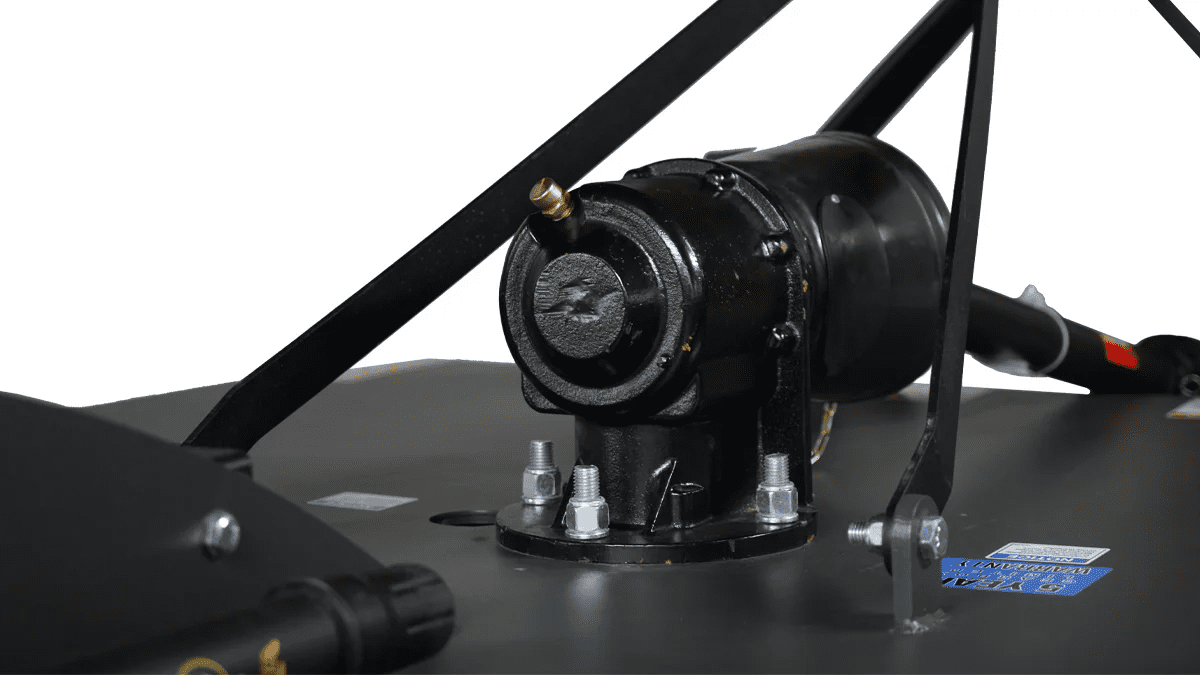

• Gearbox Rating: High-torque 100 HP gearbox

Drivetrain & Hardware Details

• Blade System: 1/2″ x 3″ blades with 13,000 FPM (Feet Per Minute) tip speed
• Hitch Type: Category 1 (Cat 1) compatibility

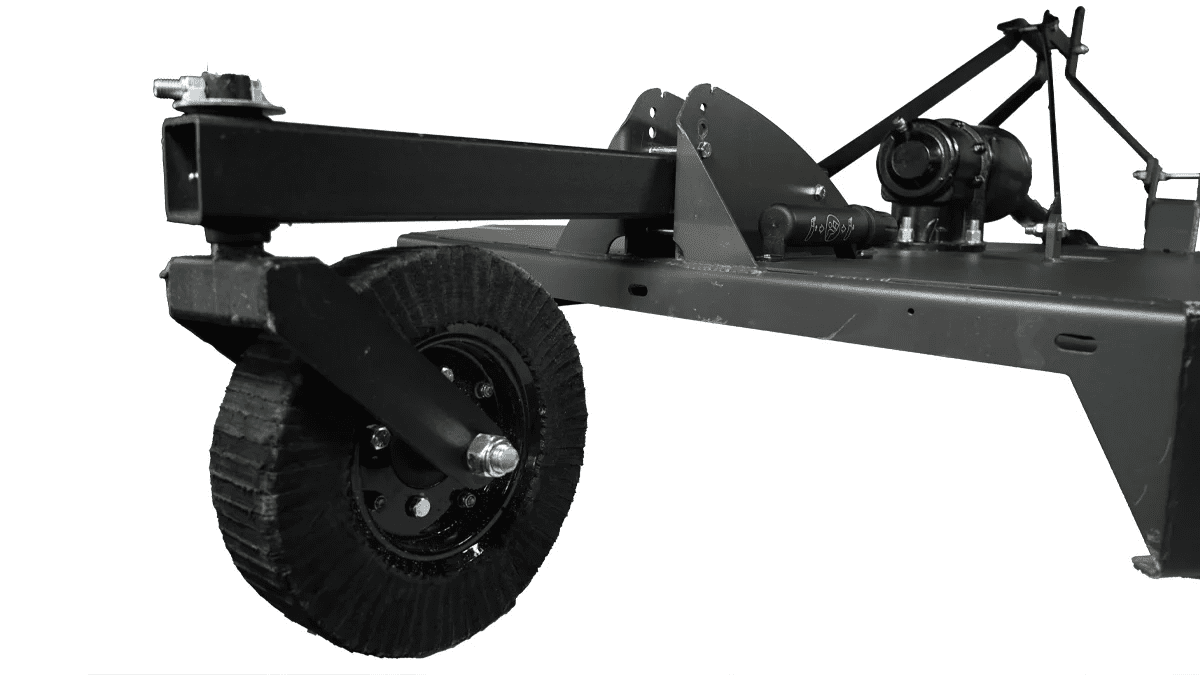

• Tailwheel: 15″ Laminated tire with a greaseable hub
• Side Bands: 8-1/2″ depth for improved material flow
• Operating Speed: 540 RPM PTO

Warranty & Safety Options

• Gearbox Warranty: 5-Year Limited Warranty for peace of mind
• Standard Guarding: Includes driveline and clutch shields
• Optional Guarding: Customizable with rubber guards or safety chains (front and rear)
