IronCraft 3200 Series: 7′ Heavy-Duty Box Blade Scraper

IronCraft 3200 Series: 7′ Heavy-Duty Box Blade Scraper

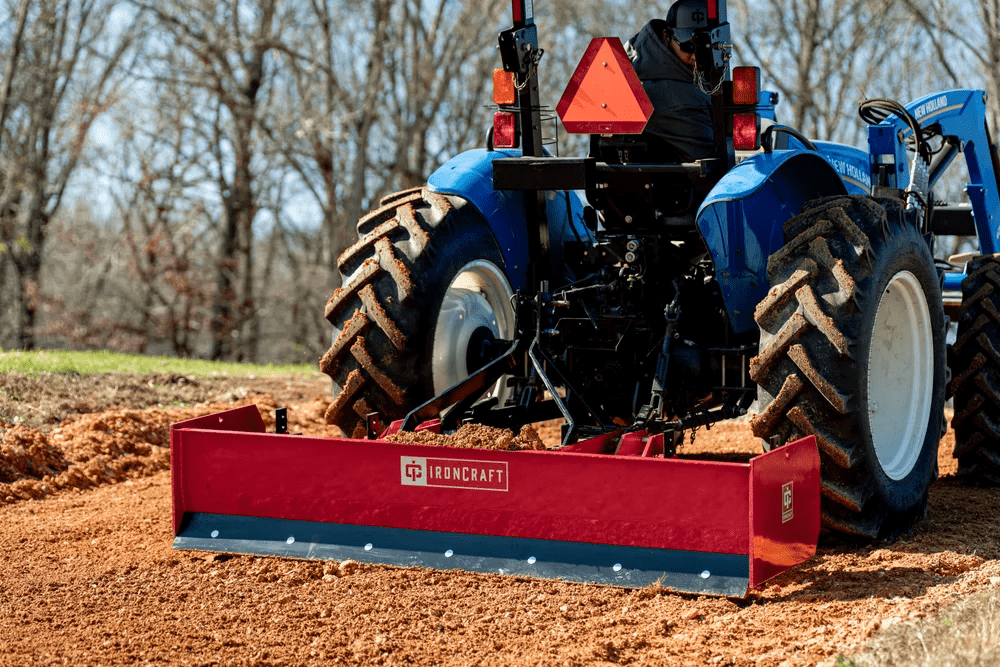

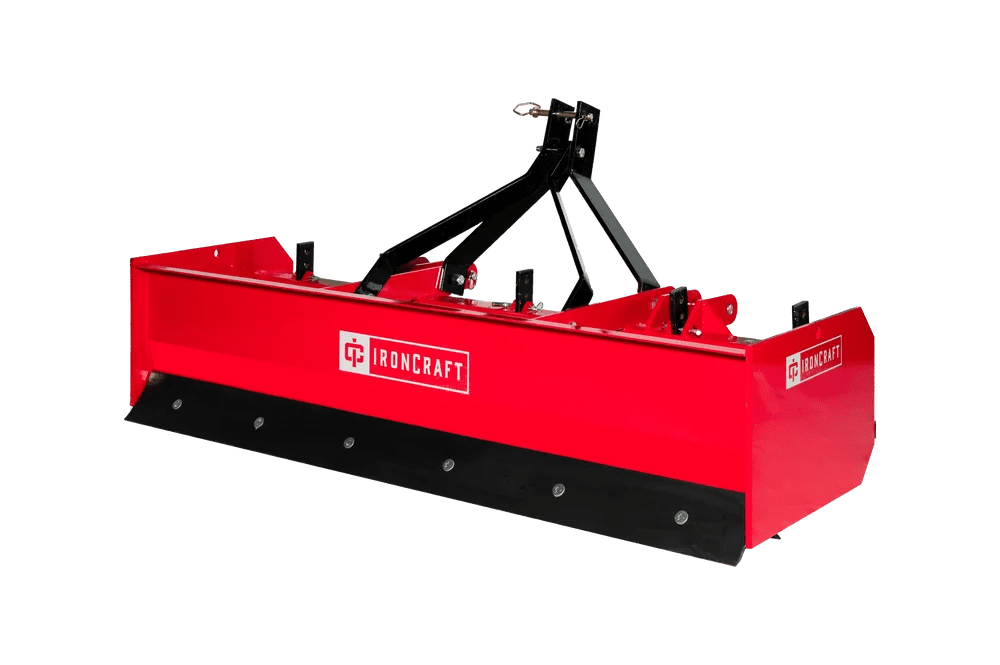

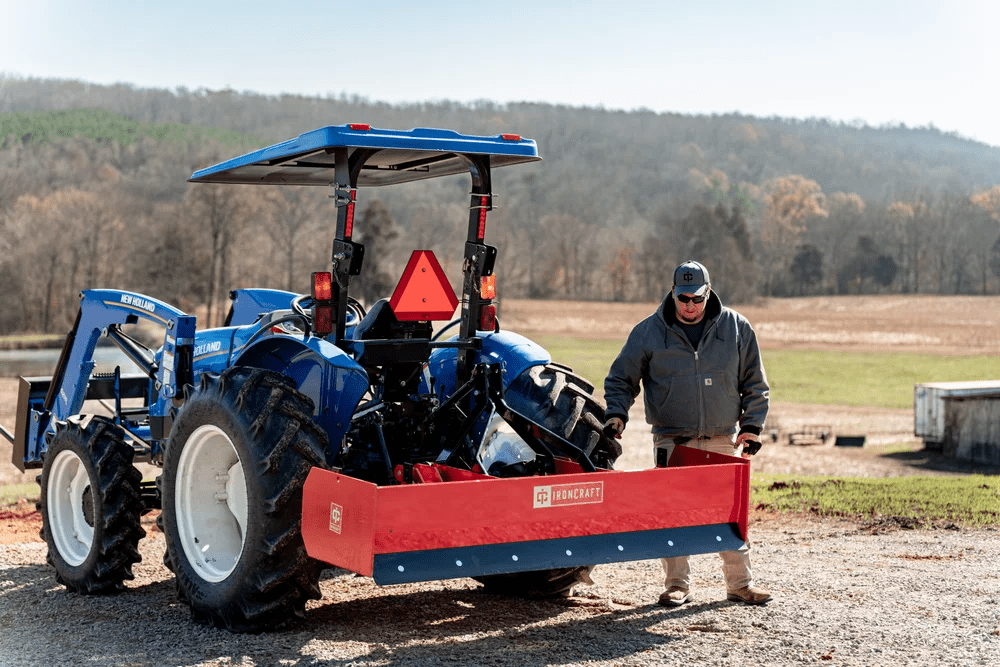

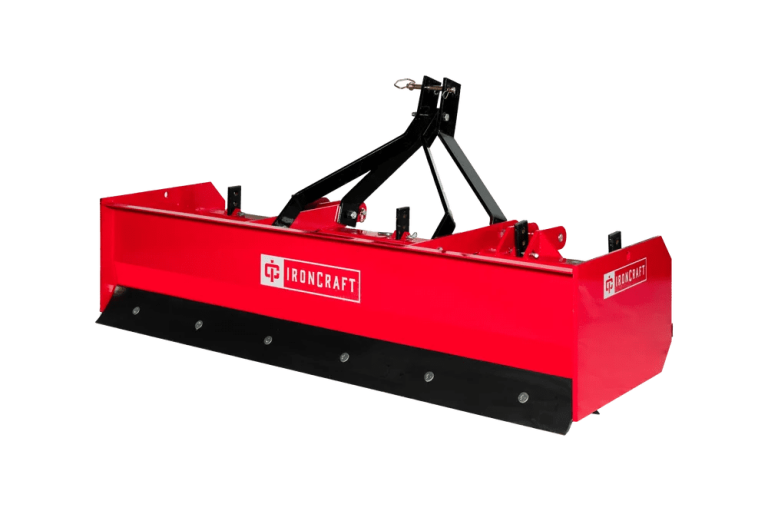

The IronCraft 3207 is a high-capacity 84″ Heavy-Duty Box Blade engineered for the most demanding earthmoving tasks. Designed for tractors between 30 and 70 horsepower, this 7-foot scraper excels at ripping compacted soil, grading expansive building sites, and leveling large-scale landscaping projects.

Built for industrial-strength performance, the 3200 Series features an ultra-tough 1/2″ A-frame and is Category 1 and 2 Quick Hitch compatible. Whether you are maintaining a commercial farm or preparing a foundation, this box blade provides the weight and structural integrity needed for aggressive soil penetration and material spreading.

Industrial Strength & Performance Features

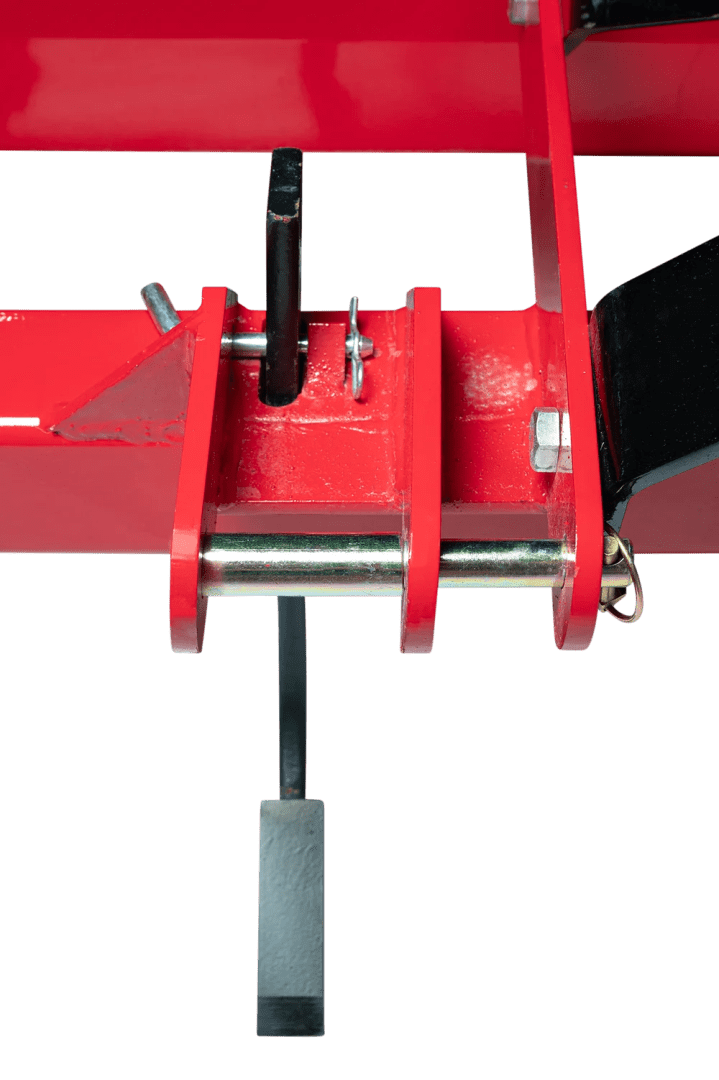

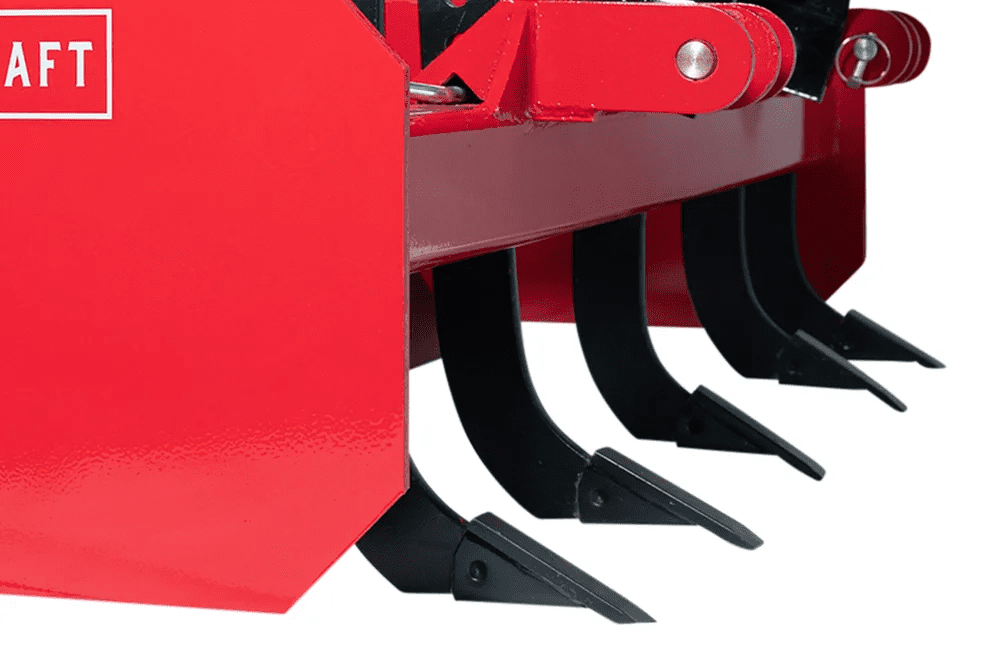

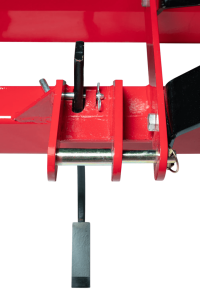

• Six Heavy-Duty Ripper Shanks: Features 6 adjustable shanks designed to break up hard-packed clay, rock-embedded soil, and sun-baked earth.

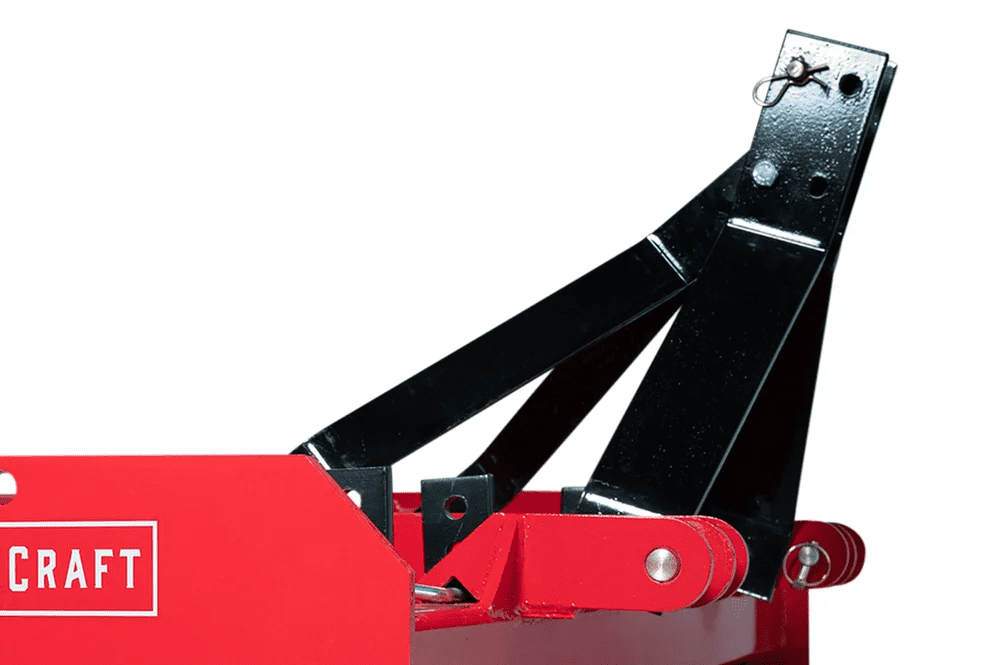

• Reinforced Frame: Constructed with 1/2″ A-frame material to withstand the high-torque stresses of 70 HP tractors.
• Dual Reversible Cutting Edges: Equipped with 6” high-carbon steel cutting edges for precision grading and an extended service life.
• High-Volume Box Design: A 17” moldboard height and 22” depth allow for moving massive amounts of dirt, gravel, or topsoil in a single pass.

Technical Specifications (Model 3207)

• Working Width: 84″ (7 Feet)
• Horsepower Requirement: 30 – 70 Engine HP
• Number of Shanks: 6 Adjustable Heavy-Duty Shanks
• Weight: 586 lbs for maximum down-pressure
• Hitch Compatibility: Dual Category 1 & 2 (Cat 1 & 2)

Build Quality & Dimensions

• Moldboard Height: 17″
• Box Depth: 22″
• A-Frame Material: 1/2″ Reinforced Steel
• Cutting Edge Size: 6″ Reversible
• Quick Hitch Ready: Fully compatible with Cat 1 and Cat 2 Quick Hitch systems

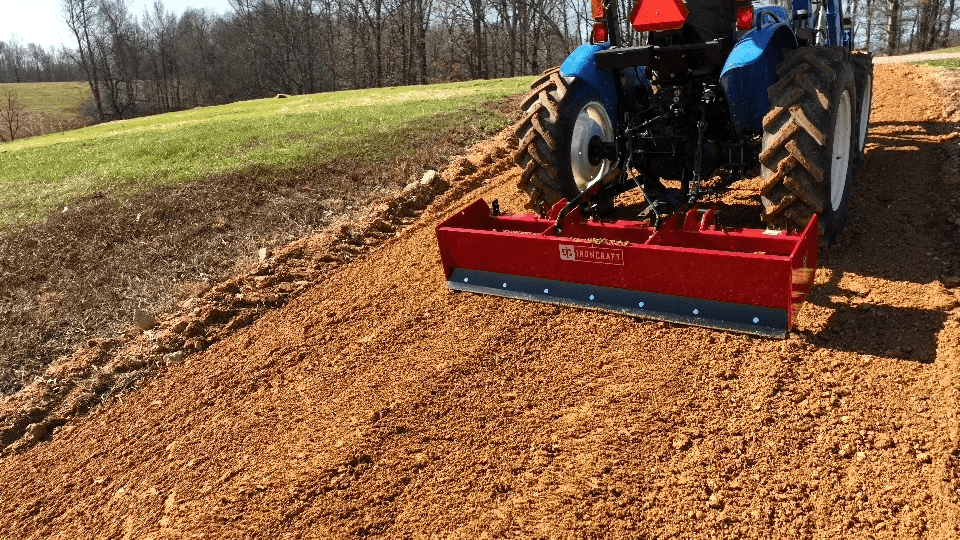

Heavy-Duty Applications

• Construction & Site Prep: Professional-grade leveling around foundations and road beds.
• Commercial Landscaping: Spreading large volumes of topsoil and sub-grade material with ease.

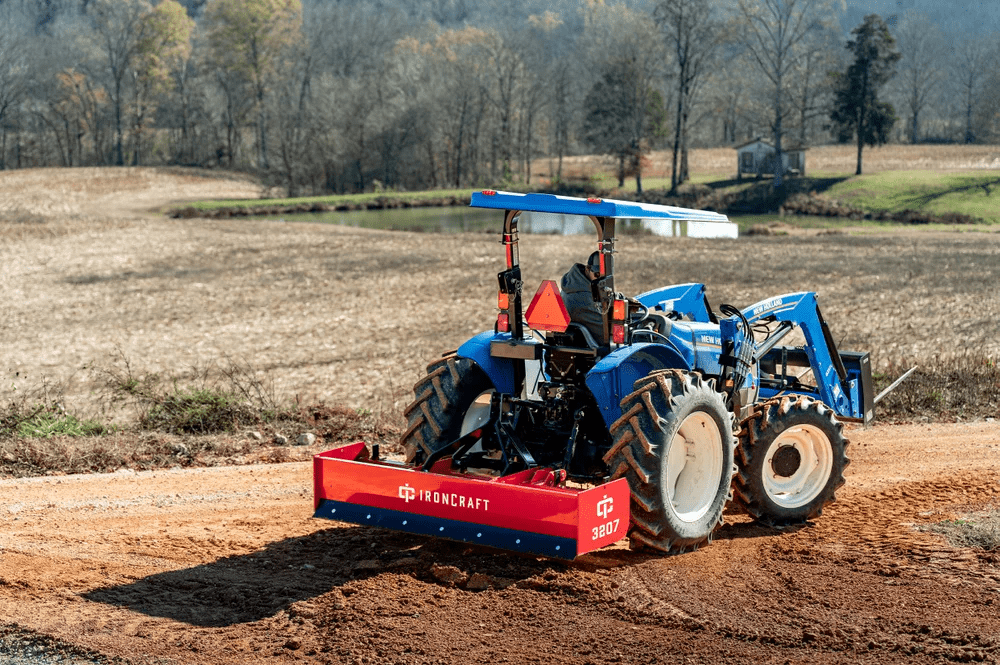

• Agricultural Maintenance: Maintaining heavy-traffic farm roads and clearing large livestock areas.
• Gravel Road Grading: Perfect for repairing deep potholes and redistributing heavy road base.
