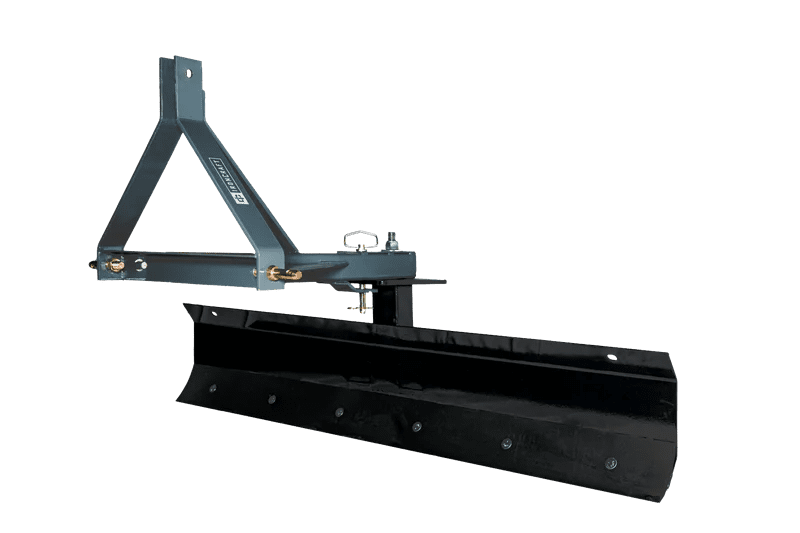

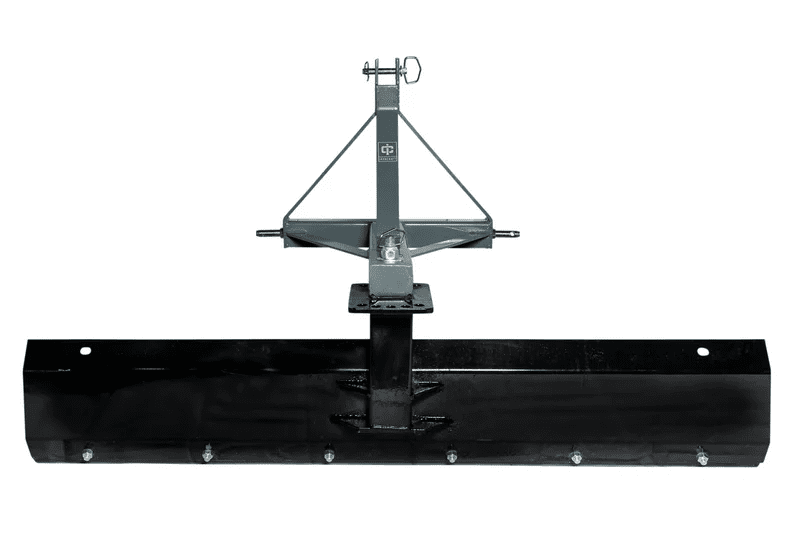

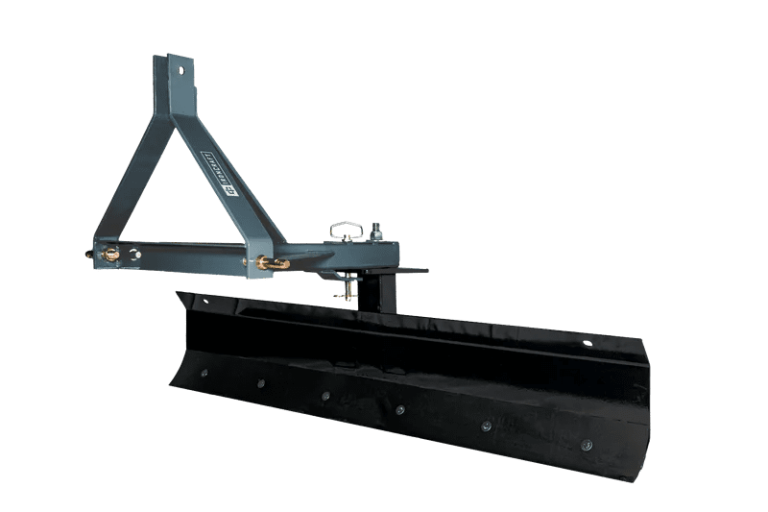

IronCraft 4100 Series: 4′ Economy Grader Blade

IronCraft 4100 Series: 4′ Economy Grader Blade

The IronCraft 4104 is an efficient and versatile 48″ Economy Grader Blade designed specifically for tractors between 15 and 25 horsepower. This 4-foot blade is the perfect attachment for managing topsoil, grading gravel driveways, clearing snow, and handling light-duty maintenance tasks around the homestead or small construction site.

Built for simplicity and durability, the 4100 Series is Category 1 Quick Hitch compatible, allowing for fast, hassle-free attachment to your sub-compact tractor. Whether you are leveling a garden path or clearing a sidewalk, this blade provides the maneuverability and strength required for basic land grading.

Key Versatility & Performance Features

• Multi-Position Angle Adjustment: Features a 5-position adjustment for both forward and reverse operation, allowing you to push or pull material at the perfect angle.
• Durable Cutting Edge: Equipped with a 6” high-carbon steel cutting edge designed for clean scraping and a long service life.
• Compact & Lightweight: At only 158 lbs, it is easy to handle and won’t overwhelm the lifting capacity of smaller sub-compact tractors.

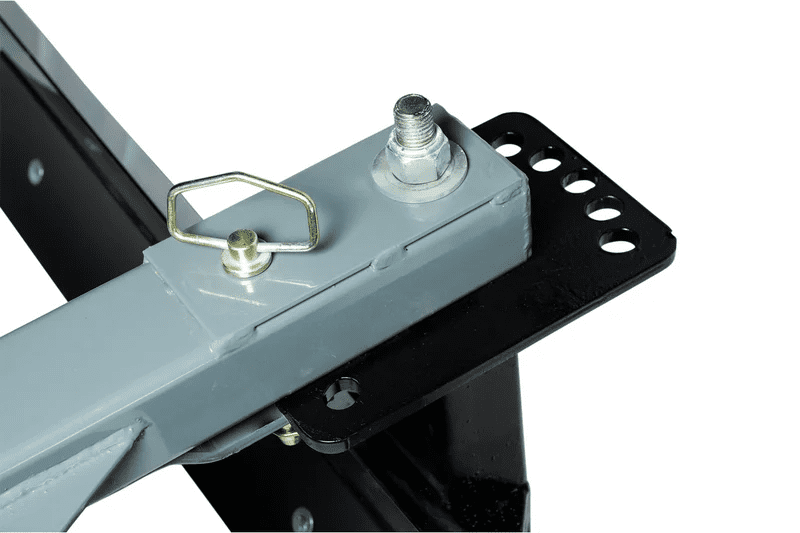

• Rugged Frame Construction: Built with a 3/8″ A-frame to ensure structural integrity during soil and snow removal.

Technical Specifications (Model 4104)

• Working Width: 48″ (4 Feet)
• Horsepower Requirement: 15 – 25 Engine HP
• Moldboard Height: 13″ for efficient material rolling
• Weight: 158 lbs for agile operation
• Hitch Type: Category 1 (Cat 1) Quick Hitch Compatible

Build Quality & Dimensions

• Blade Angle: 5-position (Forward and Reverse)
• A-Frame Material: 3/8″ Steel
• Cutting Edge Size: 6″ Reversible and Replaceable
• Implement Category: Economy-Duty Rear Blade

Common Applications

• Snow Removal: Ideal for clearing driveways and walkways on small properties.
• Gravel Maintenance: Perfect for smoothing out small ruts and redistributing driveway stone.
• Garden Preparation: Use the 48″ width to level tilled soil in tight garden plots or flower beds.
• Light Grading: Leveling topsoil and spreading mulch for landscaping projects.
