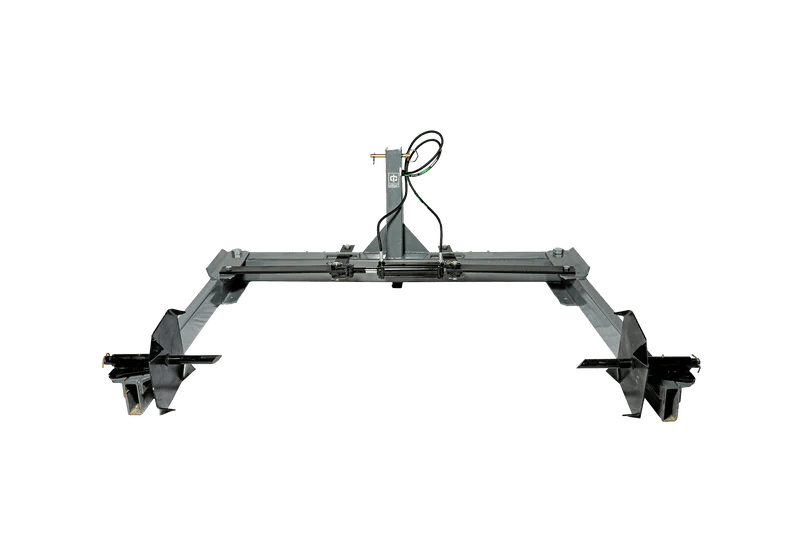

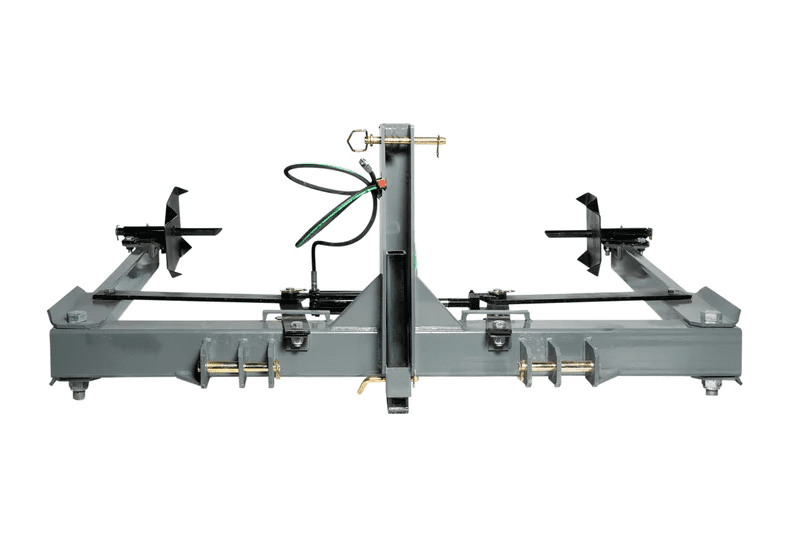

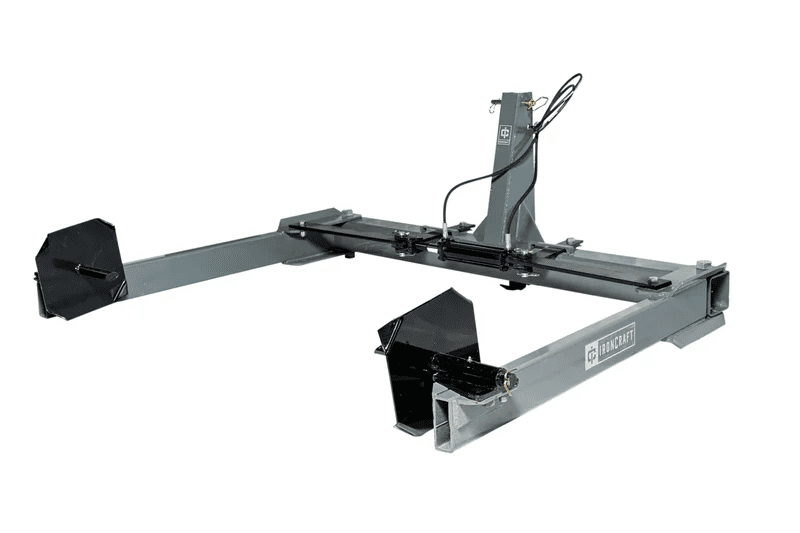

IronCraft 9300BU Series: Heavy-Duty Round Bale Unroller

IronCraft 9300BU Series: Heavy-Duty Round Bale Unroller

The IronCraft 9300BU is a versatile and rugged Tractor Bale Unroller engineered for farming and ranching operations. Designed to work with tractors ranging from 35 to 125 HP, this implement streamlines the process of lifting, transporting, and unrolling round bales to ensure even feeding and bedding distribution across your pastures.

Built for industrial-scale reliability, the 9300BU is Category 1 and 2 Quick Hitch compatible. It is a dual-purpose tool that allows you to move hay without a spear and unroll it with precision, reducing hay waste and protecting your herd’s nutritional intake.

Key Performance & Handling Features

• High-Capacity Lifting: Engineered to safely handle large round bales weighing up to 2,200 lbs.
• Adjustable Bale Widths: Features an adjustable design that accommodates 4′, 5′, and 6′ wide bales, providing the flexibility needed for different hay sources.
• Hydraulic Precision: Comes standard with cylinders and hoses, allowing for seamless operation from the tractor seat.
• Integrated Storage Stand: Includes a built-in stand to keep the implement upright and protected when not in use, making hook-ups faster and safer.

Technical Specifications (Model 9300BU)

• Maximum Lift Capacity: 2,200 lbs
• Horsepower Requirement: 35 – 125 HP
• Hitch Compatibility: Dual Category 1 & 2 (Cat 1 & 2)
• Operating Weight: 375 lbs

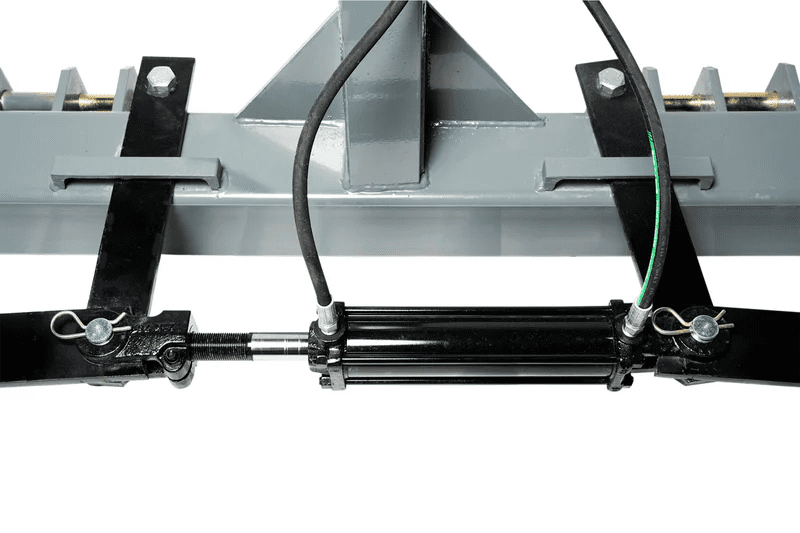

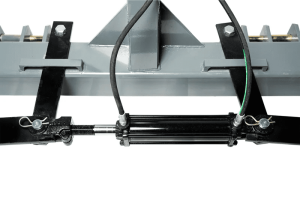

• Hydraulics: Cylinder and Hoses included as standard equipment

Build Quality & Operational Design

• Quick Hitch Ready: Designed for easy attachment to modern Category 1 and Category 2 three-point systems.
• Durable Frame: Built with high-strength steel to provide years of service in demanding ranch environments.
• Time-Saving Operation: Eliminates the need for manual pitchfork work by automating the hay distribution process.

Primary Ranching Applications

• Winter Feeding: Unroll hay in long rows to allow multiple head of cattle to eat simultaneously without crowding at a feeder.
• Pasture Management: Distribute organic matter and seeds across the field by unrolling hay in different locations each day.
• Herd Bedding: Quickly lay out clean straw or low-quality hay for calf bedding in cold weather.
• Efficient Hay Transport: Use the heavy-duty arms to lift and move bales from storage to the field without a dedicated bale spear.
