IronCraft BR10: 10-Wheel Pull-Type V-Frame Bat Rake

IronCraft BR10: 10-Wheel Pull-Type V-Frame Bat Rake

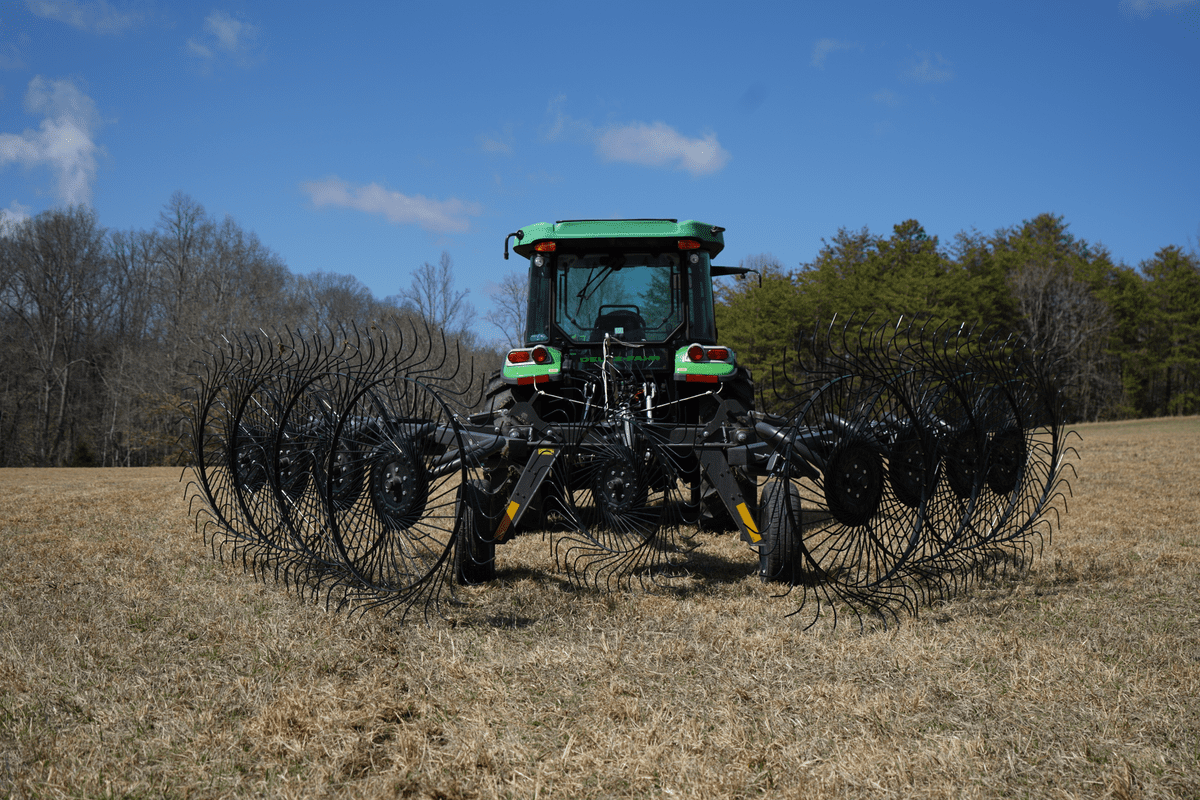

The IronCraft BR10 is a high-capacity 10-wheel V-rake designed for maximum efficiency in the hay field. Engineered for tractors with at least 50 horsepower, this pull-type rake offers a massive working width of up to 21.7 feet, allowing you to cover more acreage in less time while maintaining superior forage quality.

Built for versatility on uneven terrain, the BR10 features independent rake wheel suspension and requires no PTO, making it a low-maintenance powerhouse. Whether you are raking heavy grass or dry alfalfa, the hydraulic adjustments allow you to fine-tune your windrows for the perfect baler intake.

Key Performance & Forage Handling Features

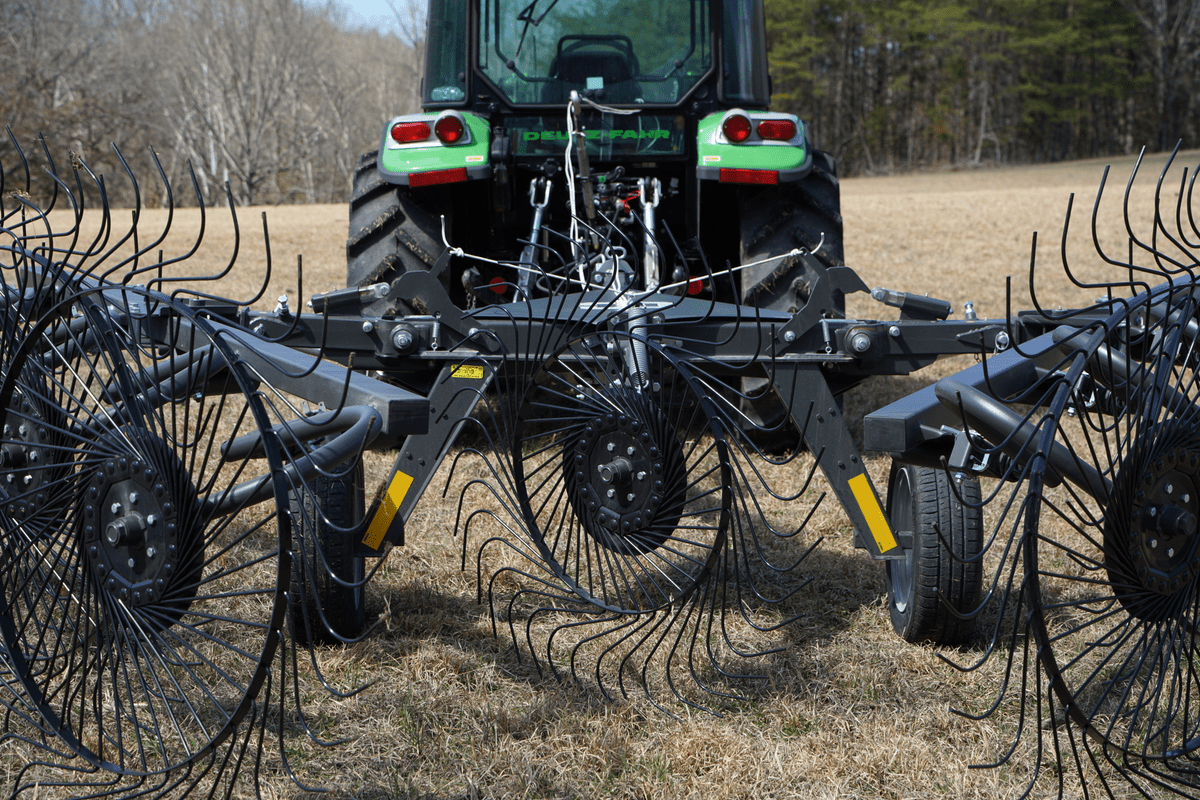

• Independent Torsion Suspension: Each of the 10 rake wheels is equipped with an individual torsion spring, allowing the rake to follow ground contours perfectly without picking up dirt or skipping hay.
• Hydraulic Width Control: Easily adjust your working width from 18.4′ to 21.7′ and manage windrow widths from 1.6′ to 6.6′ directly from the tractor cab.
• High-Durability Tines: Every 4.9′ rake wheel features 40 heavy-duty 7mm (0.295″) tines, designed for long life and clean pick-up in thick or thin crops.
• Low Maintenance Design: As a pull-type ground-drive rake, there are no gearboxes or PTO shafts to maintain, reducing downtime during critical harvest windows.

Technical Specifications (Model BR10)

• Number of Wheels: 10 High-Capacity Rake Wheels
• Working Width: Adjustable from 18.4′ to 21.7′
• Windrow Width: Adjustable from 1.6′ to 6.6′
• Horsepower Requirement: 50 HP (Minimum Recommended)
• Weight: 1,620 lbs for stability and consistent ground contact
• Rake Wheel Diameter: 4.9′ (58.8 inches)

Build Quality & Optional Upgrades

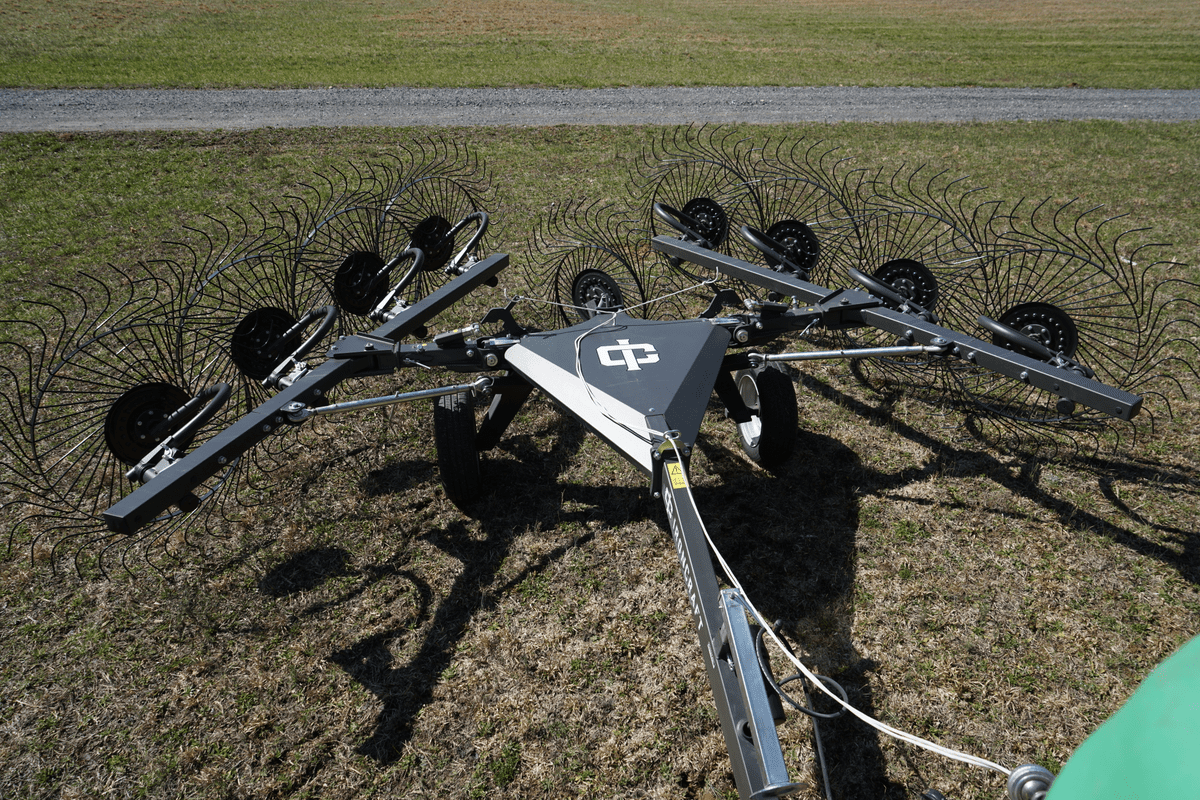

• V-Frame Stability: The heavy-duty pull-type frame is designed for high-speed raking and stable transport between fields.
• Optional Center Wheel Kit: Enhance your hay movement by adding a center kicker wheel to ensure the entire swath is turned and dried evenly.
• Mechanical Reliability: Simple, rugged construction ensures years of dependable service in demanding ranching environments.

Primary Haying Applications

• Commercial Hay Production: High-speed raking of large fields to maximize baling windows.
• Alfalfa & Clover Management: Gentle wheel action preserves delicate leaves while creating consistent, breathable windrows.
• Pasture Reclamation: Effectively gather cut grass and forage on uneven or rolling terrain thanks to the independent suspension.
