IronCraft FMH Series: 63″ Standard-Duty Flail Mower

IronCraft FMH Series: 63″ Standard-Duty Flail Mower

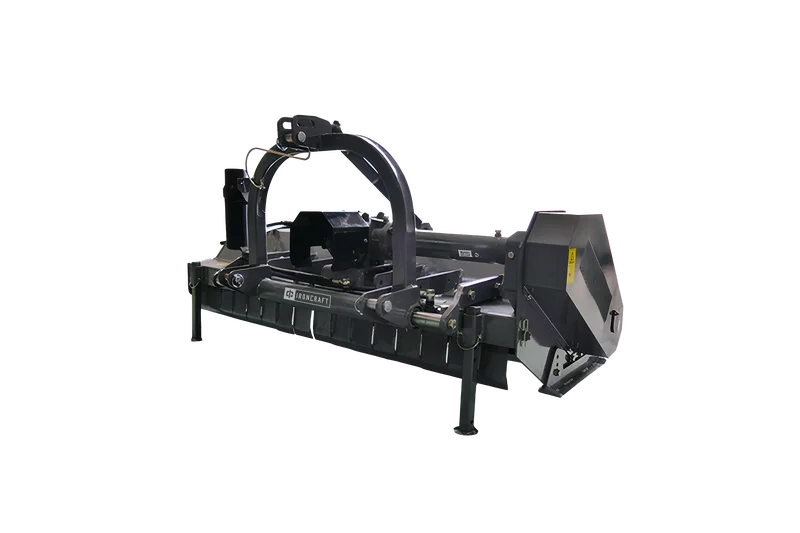

The IronCraft FMH-160 is a versatile 63″ standard-duty flail mower engineered for tractors between 35 and 70 PTO horsepower. Designed for landowners who need precision and power, this mower excels at maintaining edges, fence lines, and uneven terrain.

Equipped with a Category 1 hitch and integrated hydraulic side shift, the FMH series provides 12″ of offset for superior maneuverability around obstacles. Whether you are clearing grass or tackling brush up to 1.5” thick, the FMH-160 delivers a professional, even finish every time.

Performance & Versatility Features

• Dual Cutting Options: Comes standard with 20 heavy-duty hammer flails for brush, with optional knife blades available for a finer finish.
• Hydraulic Side Shift: Provides a 12″ offset to give operators greater control when working along tight boundaries.
• Clean Cut Technology: Features integrated rakes and a standard rear roller to ensure a consistent, professional appearance.
• Robust Drive System: Utilizes a 4-belt drive system to handle varied vegetation densities with ease.

Technical Specifications (FMH-160)

• Working Width: 63″ Cutting Path
• HP Requirement: 35 – 70 PTO HP
• Hydraulic Offset: 12″ of lateral travel
• Cutting Capacity: Grass and brush up to 1.5″ thick
• Weight: 908 lbs for stable operation

Drivetrain & Build Quality

• Hitch Compatibility: Category 1 (Cat 1)
• Blade Count: 20 high-mass hammers
• Belt Configuration: 4-belt drive for maximum torque transfer
• Overall Width: 69″ total footprint

Maintenance & Usage Applications

• Ideal For: Managing farm perimeters, fence lines, and light-to-medium brush clearing.
• Easy Serviceability: Designed with accessible grease points and a standard-duty frame for long-term reliability.
• Customizable Finish: Switch between hammers for rough-cut brush and optional knives for park-like grass maintenance.
