IronCraft FMH Series: 86.5″ Standard-Duty Flail Mower

IronCraft FMH Series: 86.5″ Standard-Duty Flail Mower

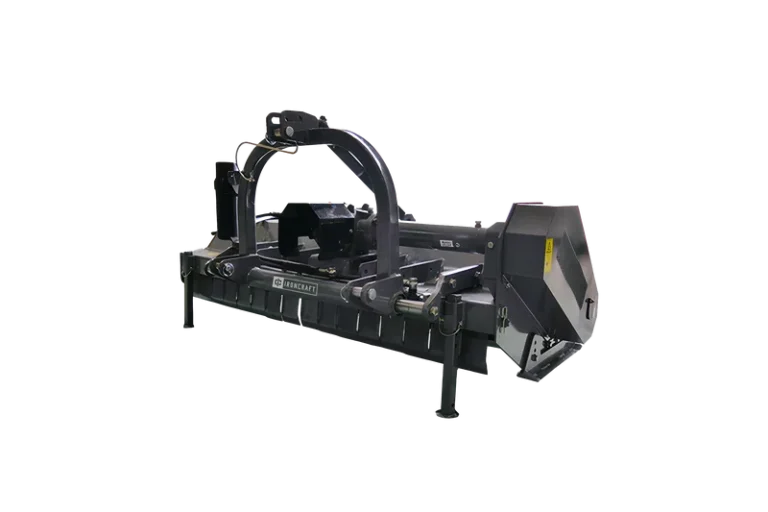

The IronCraft FMH-220 is a versatile and robust standard-duty flail mower designed for tractors between 50 and 70 PTO horsepower. With its expansive 86-1/2″ working width, this mower is the perfect solution for maintaining large pastures, clearing brush up to 1.5” thick, and achieving a professional finish on uneven terrain.

Engineered for precision and durability, the FMH series features a Category 1 hitch and integrated hydraulic side shift. This allows operators to easily maneuver the mower along fence lines, edges, and obstacles without repositioning the tractor, significantly increasing efficiency in the field.

Performance & Professional Features

• Hydraulic Offset: Features a 12″ hydraulic side shift for superior control in tight spaces.
• Heavy-Duty Hammers: Comes standard with 28 hammer flails designed to pulverize grass and woody material up to 1.5″ in diameter.
• Clean Cut Technology: Includes a standard rear roller and integrated rakes to ensure a smooth, even finish across your property.
• Optional Versatility: While hammers are standard for brush, optional knife blades are available for those seeking a finer finish for grass.

Technical Specifications (Model FMH-220)

• Working Width: 86-1/2″
• HP Requirement: 50 – 70 PTO HP
• Cutting Capacity: Material up to 1.5″ thick
• Hitch Type: Category 1 (Cat 1)
• Weight: 1,116 lbs for stable operation

Build Quality & Drivetrain

• Hammer Count: 28 high-impact hammers
• Drive System: 4-belt drive system for consistent power and slip protection
• Overall Width: 93″ total footprint
• Rear Roller: Standard equipment for height control and soil compaction
• Integrated Rakes: Standard feature to ensure debris is properly mulched

Maintenance & Application

• Edge Maintenance: Hydraulic side shift makes it the best flail mower for fence lines and roadside edges.
• Dual-Purpose Capability: Transition from brush clearing to finish mowing with optional knife blade compatibility.
• Accessible Service: Designed for easy access to belts and grease points to maximize machine uptime.
