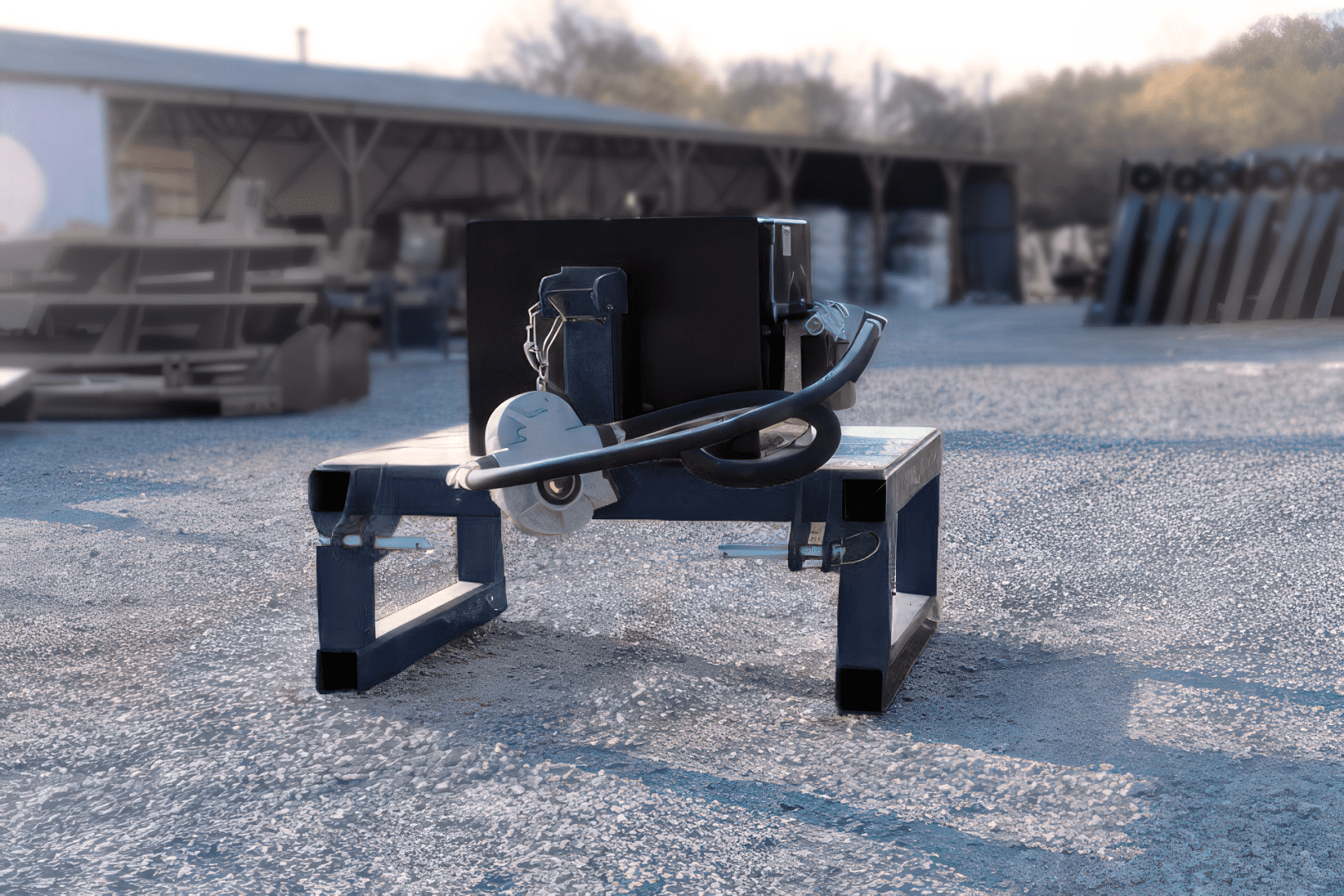

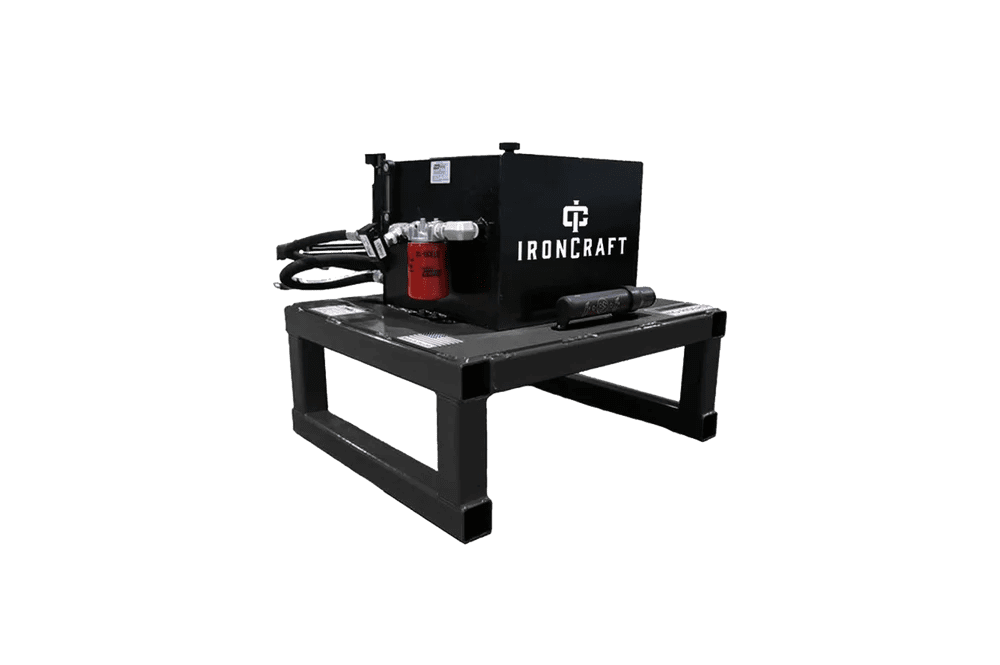

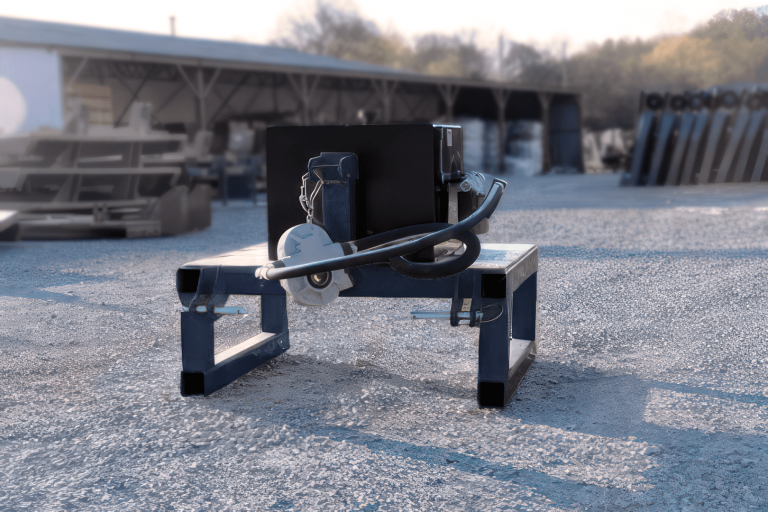

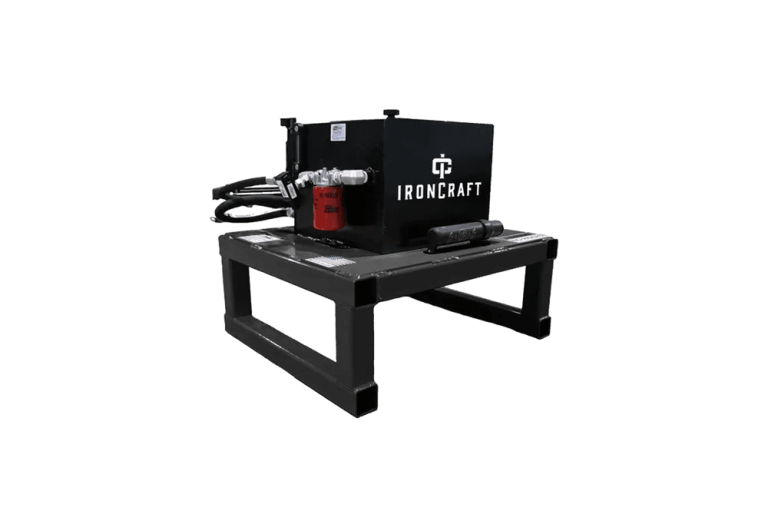

IronCraft IC-AUXKIT: 3-Point Self-Contained Auxiliary PTO Hydraulic Kit

IronCraft IC-AUXKIT: 3-Point Self-Contained Auxiliary PTO Hydraulic Kit

The IronCraft Auxiliary PTO Hydraulic Kit (IC-AUXKIT) is a premium, self-contained solution designed to provide independent hydraulic power to your 3-point implements. Engineered for tractors starting at 15 HP, this kit is the perfect upgrade for operators who need consistent, high-volume hydraulic flow without taxing the tractor’s internal hydraulic system.

At the heart of the system is a high-capacity 20-gallon reservoir tank, ensuring your equipment stays cool and lubricated during extended work cycles. Whether you are running hydraulic motors or high-demand cylinders, this 11.4 GPM pump kit delivers the “plug-and-play” power needed for professional-grade performance.

Advanced Power & Monitoring Features

• High-Flow Performance: Delivers a steady 11.4 GPM flow range, specifically optimized for implements requiring 9–14 GPM.
• Large 20-Gallon Reservoir: Provides ample fluid volume to prevent overheating and aeration during heavy-duty applications.
• Integrated Fluid Monitoring: Features a built-in oil sight glass and temperature gauge for real-time monitoring of fluid levels and thermal health.
• Self-Contained 3-Point Design: Easily mounts to your tractor’s rear hitch, keeping your hydraulic power source compact and portable.
• Optimal Thermal Management: The large tank surface area and high fluid capacity ensure the system runs at peak efficiency in all weather conditions.

Technical Specifications (Model IC-AUXKIT)

• Product Family: Auxiliary PTO Hydraulic Kit
• Flow Rate: 11.4 GPM
• Reservoir Capacity: 20 Gallon Tank
• Horsepower Requirement: 15 HP Minimum
• Operating Weight: 400 lbs (When fluid-filled)
• Compatibility: Designed for units requiring 9 – 14 GPM flow

High-Demand Hydraulic Applications

• Backhoe Attachments: Provide the dedicated flow and pressure required for fast, responsive digging and swinging.
• Hydraulic Wood Splitters: Power large-diameter cylinders for splitting tough logs without slowing down your tractor’s steering or loader.
• PTO-Driven Motors: Run hydraulic sweepers, augers, or mowers that require a constant, uninterrupted flow of oil.
• Vintage Tractor Upgrades: Add modern hydraulic capabilities to older tractors that lack sufficient factory internal pumps.
