IronCraft PHD Series: 25–65 PTO HP Standard-Duty Post Hole Digger

IronCraft PHD Series: 25–65 PTO HP Standard-Duty Post Hole Digger

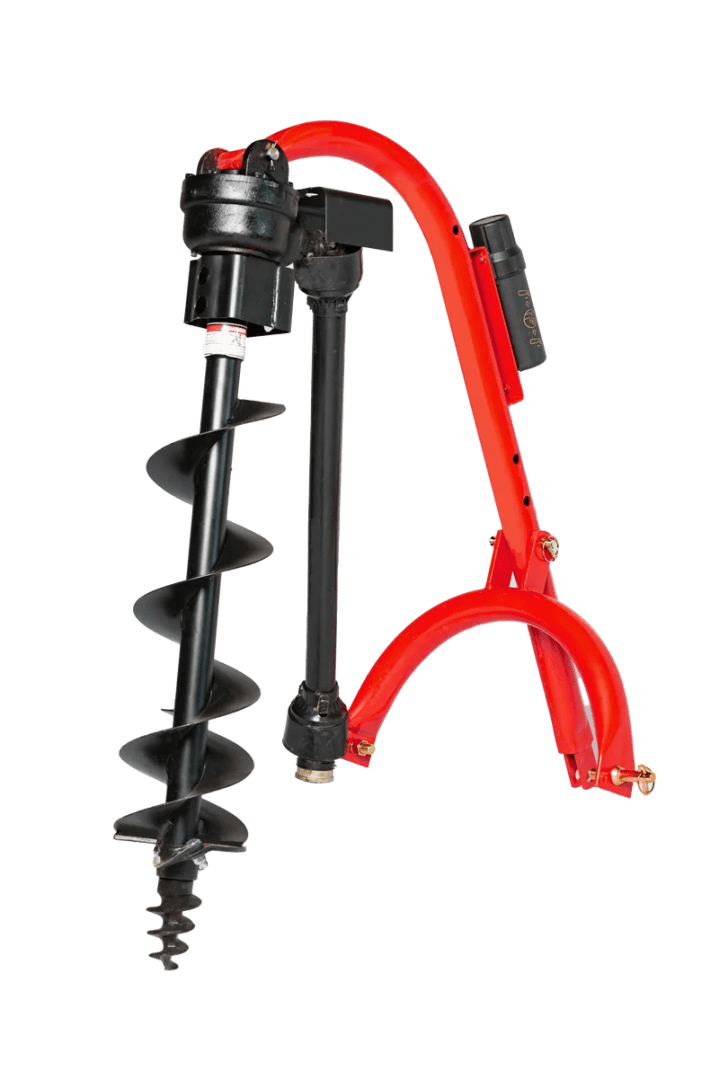

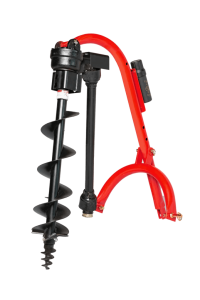

The IronCraft PHD Series is a rugged, utility-sized 3-point post hole digger engineered for tractors ranging from 25 to 65 PTO horsepower. Whether you are installing a new perimeter fence or boring holes for footings, this high-performance auger system makes digging fast and effortless, reaching depths of up to 45 inches.

Built for longevity and safety, our post hole digger is Category 1 and 2 hitch compatible and features a high-strength 2-7/8″ O.D. tubing frame. To protect your investment, every unit includes a shear bolt driveline to prevent gearbox damage when encountering underground rocks or roots.

Key Features & Boring Performance

• Versatile Hole Diameters: Designed to work seamlessly with 6”, 9”, and 12” diameter augers for various post sizes.
• Replaceable Cutting Edges: Features bolt-on steel edges that can be swapped out easily to maintain maximum boring speed in tough soil.

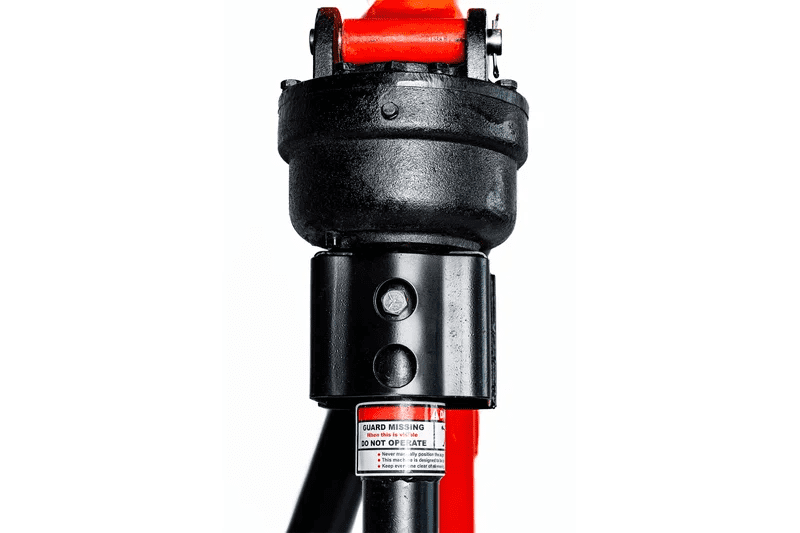

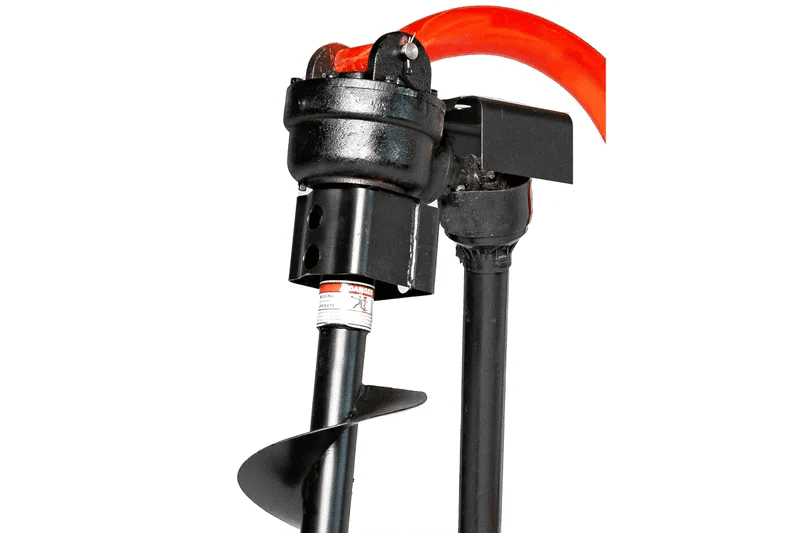

• Heavy-Duty Gearbox: Utilizes a 3:1 gear ratio with a 2″ output shaft for high-torque performance in packed clay or rocky earth.
• Reinforced Frame Design: Both the A-frame and boom are constructed from thick 2-7/8″ O.D. steel tubing for superior structural rigidity.
• Advanced Safety Guarding: Includes standard protection for the driveline, gearbox U-joint, and output shaft to ensure safe operation.

Technical Specifications (PHD Series)

• PTO Horsepower Range: 25 – 65 HP
• Hitch Compatibility: Category 1 and Category 2 (Cat 1 & 2)
• Driveline Protection: Shear Bolt System
• Output Shaft: 2-inch diameter
• PTO Drive Shaft: Yoke TS 6-spline
• Weight: 265 lbs (Power Head and Frame)

Common Fencing & Construction Applications

• Agricultural Fencing: Quickly set line posts and corner braces for livestock pastures or property boundaries.
• Pole Barn Construction: Drill precise holes for structural support poles and foundation footings.
• Orchard & Vineyard Planting: Create uniform holes for fruit trees, grapevines, or nursery stock.
• General Landscaping: Ideal for installing deck piers, mailbox posts, and commercial signage.
