IronCraft UH Series: 60″ Heavy-Duty Reverse Rotation Gear Drive Tiller

IronCraft UH Series: 60″ Heavy-Duty Reverse Rotation Gear Drive Tiller

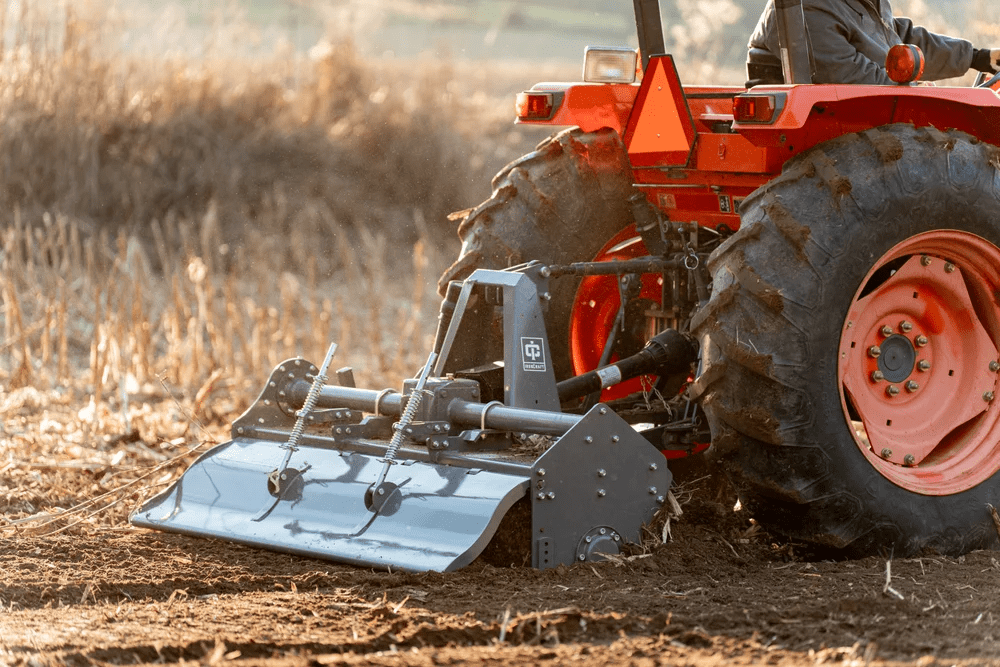

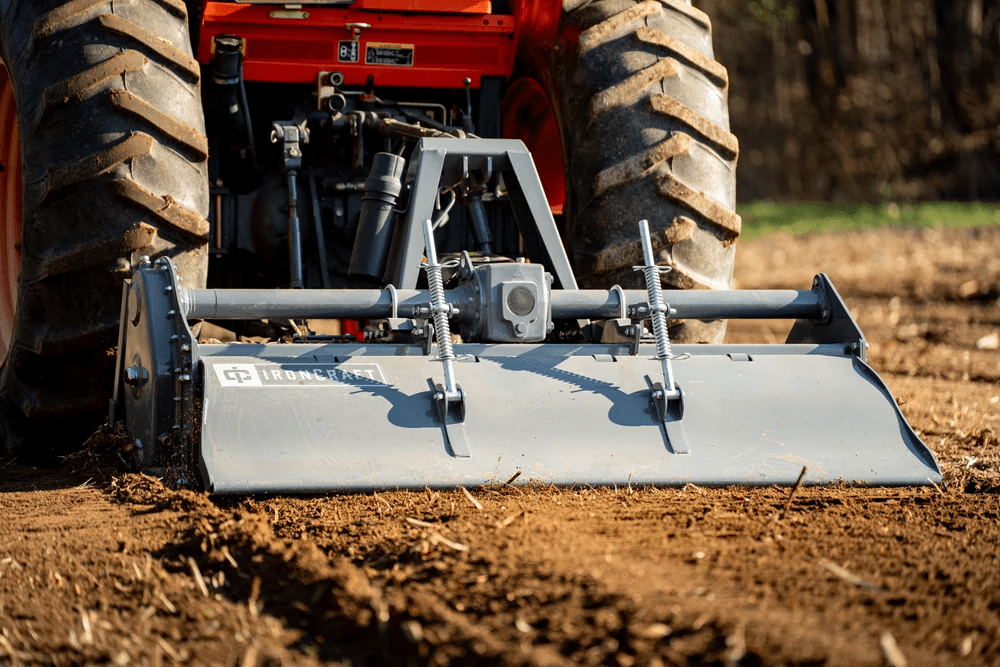

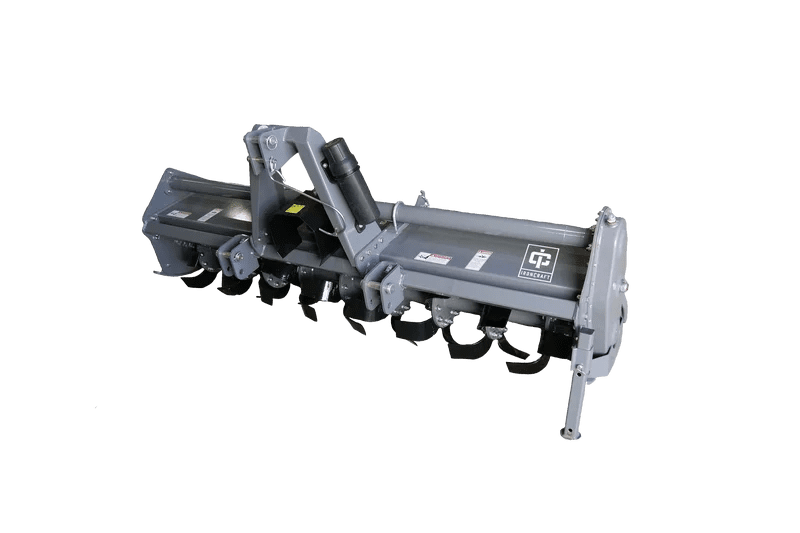

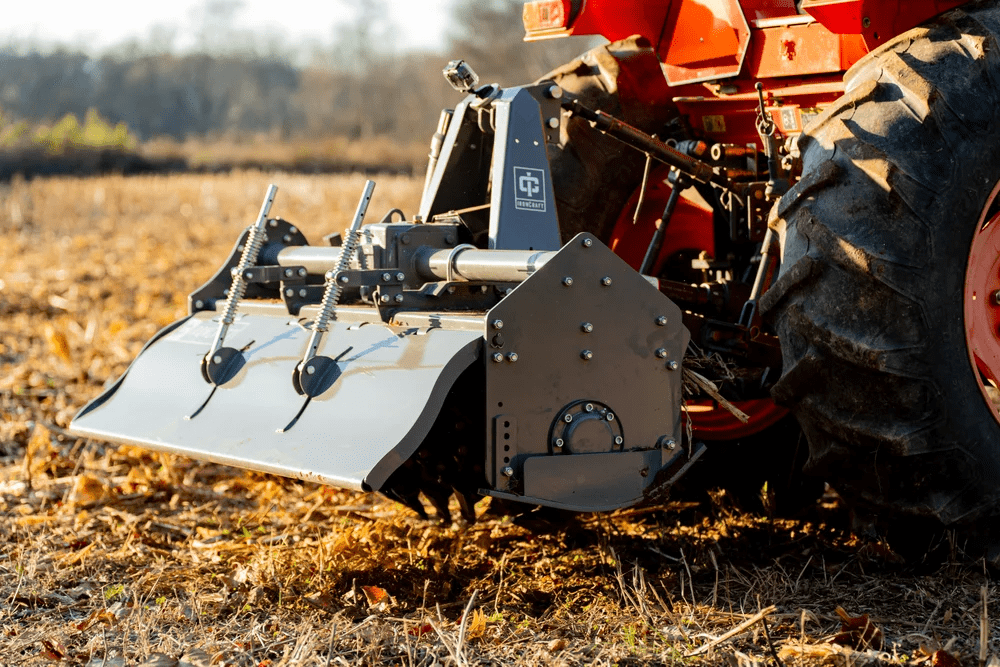

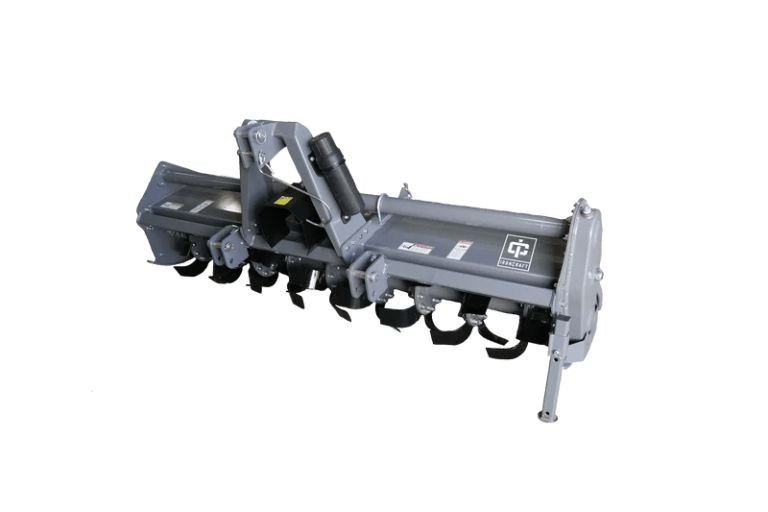

The IronCraft UH-60-R is an industrial-grade 60-inch Heavy-Duty Rotary Tiller engineered for tractors between 40 and 55 horsepower. Built to dominate demanding landscapes, this reverse-rotation tiller is specifically designed to cut through stony, compacted, and virgin soils that stall standard forward-rotation models.

Featuring a high-performance gear-drive system and Category 1 and 2 compatibility, the UH-60-R offers professional-level durability. The reverse-rotation action pulls the tiller into the ground, preventing “walking” on hard surfaces and ensuring a deep, pulverized seedbed in a single pass.

Industrial Performance & Reverse Tillage Benefits

• Aggressive Reverse Rotation: The counter-rotating tines pull the implement into the soil, burying large clods and stones at the bottom of the furrow for a superior surface finish.
• High-Torque Gear Drive: Unlike chain-driven models, the oil-bath gear drive system provides maximum power transfer and long-term reliability in extreme conditions.
• Deep Ground Penetration: Capable of reaching a maximum working depth of 7-1/2″, ideal for deep-root crops and extensive soil renovation.
• 42-Tine Configuration: Features 7 flanges with 6 tines per flange, ensuring intensive soil pulverization and thorough aeration.

Technical Specifications (Model UH-60-R)

• Working Width: 65″ (Approx. 5.5 Feet)
• Horsepower Requirement: 40 – 55 PTO HP
• Hitch Type: Category 1 & 2 (Cat 1 & 2)
• Operating Weight: 860 lbs for maximum down-pressure and stability
• Rotor Diameter: Heavy-duty 3-1/2″ rotor with 19″ swing diameter

Rugged Construction & Design

• Stony Soil Capability: Engineered specifically to handle ground with high rock content without excessive wear.
• Heavy-Duty Build: At 860 lbs, this tiller stays in the ground rather than bouncing on top of hardpan.
• Standard PTO Speed: Optimized for 540 RPM operation for peak efficiency.
• Dual Hitch Compatibility: Fits both Category 1 and Category 2 three-point hitches.

Professional & Agricultural Applications

• Commercial Site Preparation: Perfect for leveling construction sites and breaking up sun-baked clay.
• New Field Establishment: Ideal for breaking sod and turning virgin land into productive garden or farm acreage.
• Stony Ground Management: The reverse rotation helps “screen” stones by burying them under a layer of fine topsoil.
• Landscape Renovation: Quickly restores neglected or compacted properties to a plantable state.
