Description
Wallace Attachments – Dozer Rakes

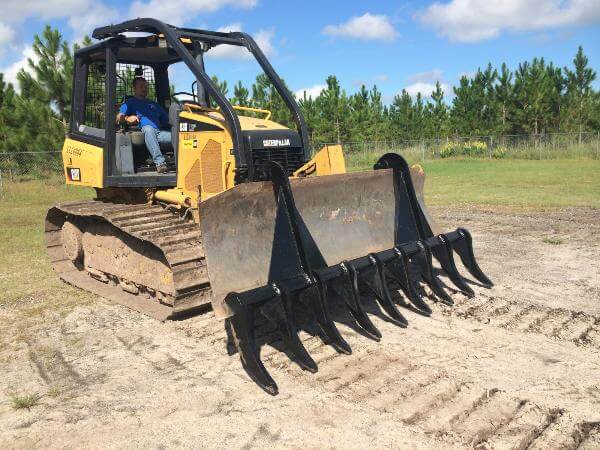

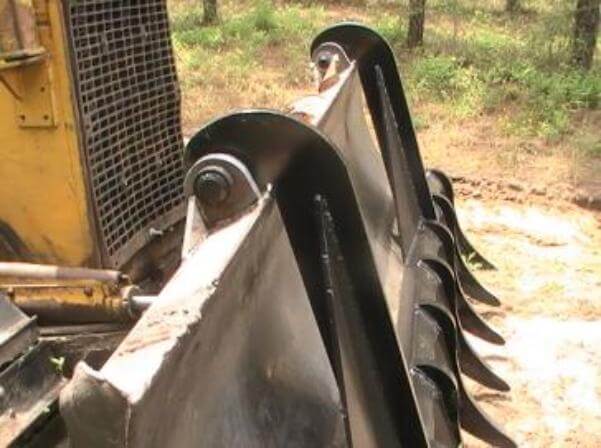

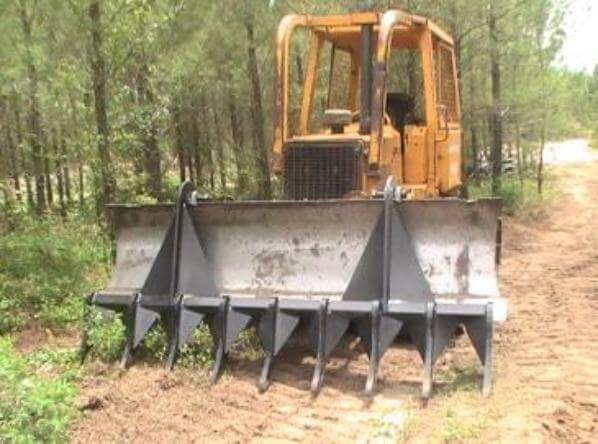

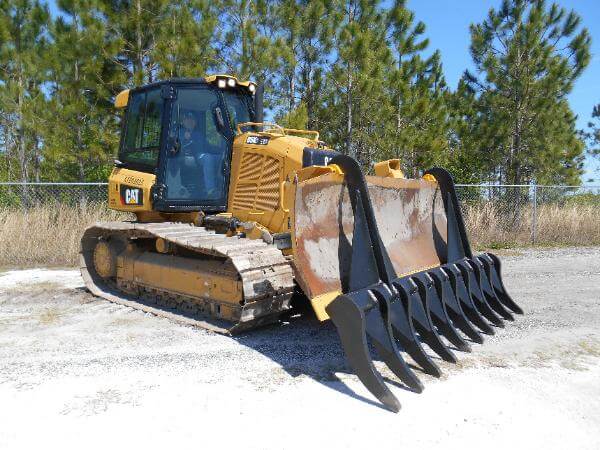

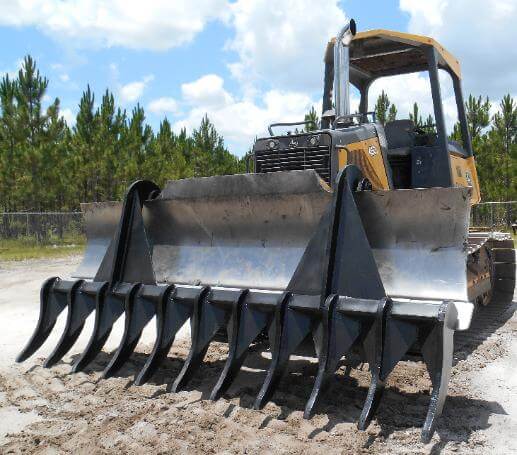

Pinned on the blade dozer rake attachment made from a high grade ( A-514 ) 130,000 tensile steel with long curved teeth, compound angled gussets, quick hitch design, superior shape, allowing the operator to push, pile and separate debris easily. Greatly increasing the type and amount of material that can be moved with the machine.
Custom built to fit any machine.
| Machine size | Width | # Of Teeth | Thickness | Main Bar | Gussets | Uprights | |
| Series I | 15,000lbs. | 8′-10′ | 9-11 | 1 1/4″ | 4″ x 4″ | 3/8″ | 1″ |
| Series II | 20,000lbs. | 10′-12′ | 9-12 | 1 1/2″ | 5″ x 5″ | 1/2″ | 1 1/4″ |
| Series III | 35,000lbs. | 12′-14′ | 10-13 | 1 3/4″ | 6″ x 6″ | 3/4″ | 1/2″ |
