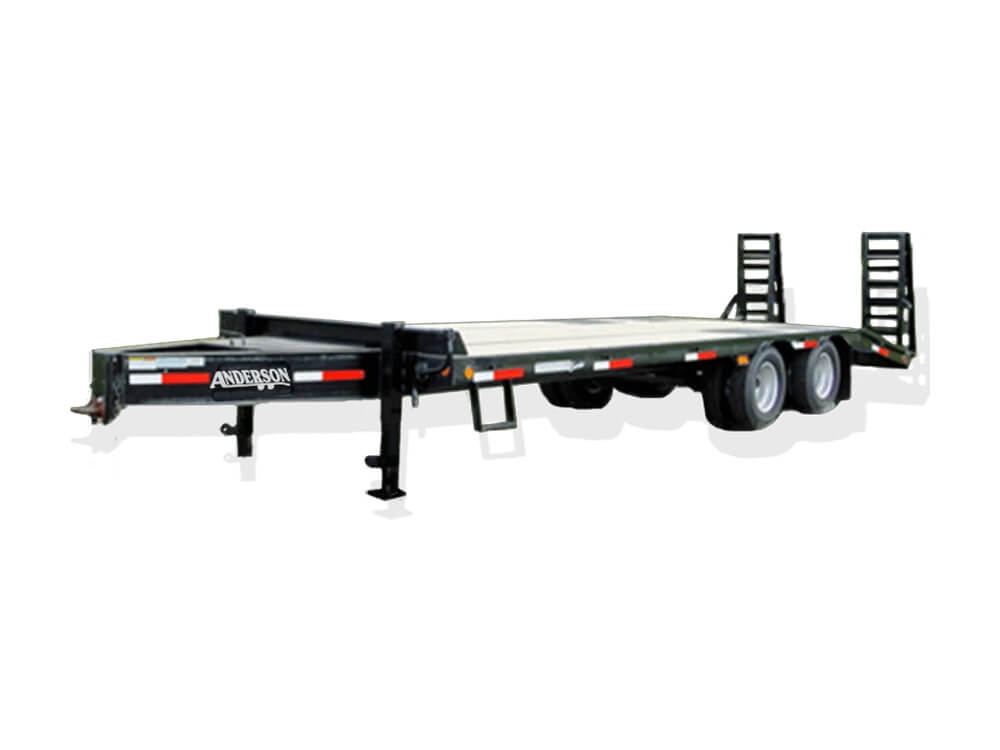

Anderson 10/12T Tagalong Workhorse Series
Description
Anderson 10/12T Tagalong Workhorse Series
- G.V.W.R. : 23,900#
- G.A.W.R. : Each Axle – 10,000#
- Coupler: Adjustable 3-Position Pintle Ring
- Safety Chain: 3/8″ Grade 43 w/ Hooks
- Jack: Bolt-On 10K Side Wind Drog Leg
- Frame: 12″ Structural I-Beam
- Frame Style: Pierced Frame Construction
- Crossmembers: 3″ Channel w/ 16″ Centers
- Side Rails: 6″ Channel w/ Rub Rail
- Ramps: 5′ Heavy Duty Runner Style w/ Spring Assist & Lockable Ramp Bars
- Axle: (2) 10,000# Oil-Bath Electric Brake
- Suspension: 3″ HD-Leaf Spring w/ Equalizer
- Tires: ST235/80R16 Load Range E
- Wheel: Dually 16″ 8-Bolt Grey (8 on 6.5 Pattern)
- Deck: 2″ Pressure Treated Pine w/ D-Rings
- Lights: L.E.D. Stop, Tail, & Turn
- Vehicle Plug: 7 – Way RV w/ Breakaway & SnapNSeal
- Paint Prep: 3- Stage Clean-Up & Prime Coat
- Paint: Durable High Solids Acrylic Enamel
- Dimensions: 5,700# – 20′, 6,000# – 25′, 6,200# – 30′, 6,550# – 33′, 6,800# – 35′, 7,300# – 40′
- Standard Features: 5′ Self-Cleaning Dovetail, Sealed Wiring Harness, Lockable Tongue Mounted Toolbox, Full-Length Diamond Plate Drive-Over Fenders
