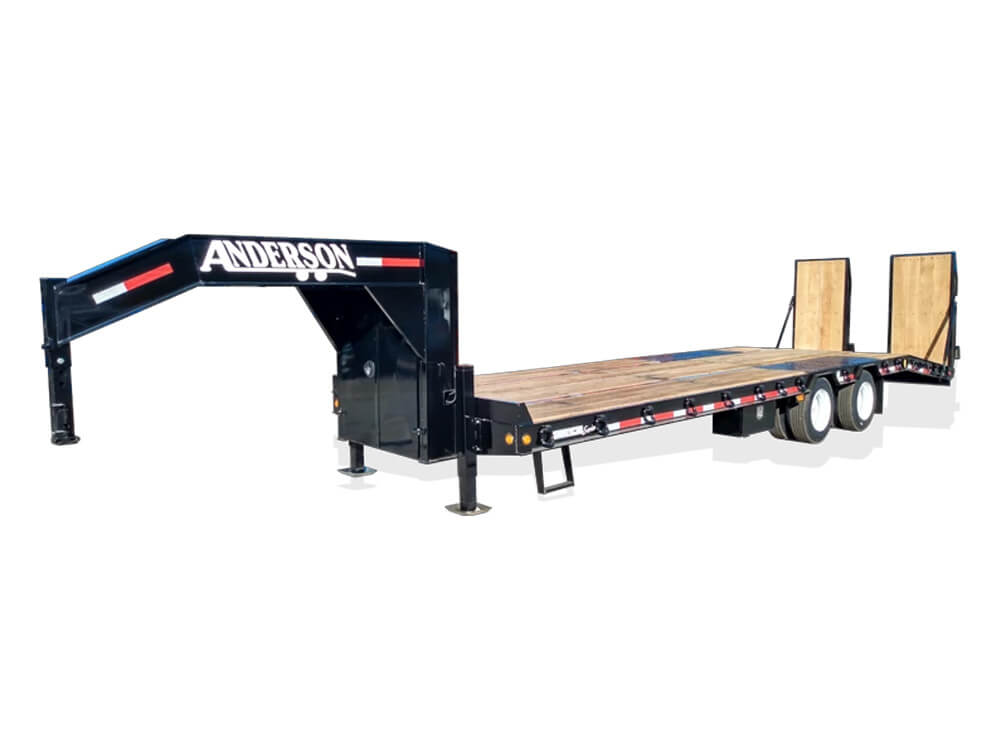

Anderson 15T Gooseneck Workhorse Series
Description
Anderson 15T Gooseneck Workhorse Series
- G.V.W.R. : 32,500#
- G.A.W.R. : Each Axle – 15,000#
- Coupler: 2-5/16″ – Adjustable Gooseneck
- Safety Chain: 7/16″ Grade 70 w/ Hooks
- Jack: Dual Bolt-On 25K 2-Speed
- Frame: 14″ Structural I-Beam
- Frame Style: Pierced Frame Construction
- Crossmembers: 5″ Channel w/ 16″ Centers
- Side Rails: 8″ Channel w/ D-Rings
- Ramps: 5’ HD-EZ Lift Runner Style w/ Spring Assist & Lockable Ramp Bars
- Axle: (2) 15,000# Oil-Bath Electric Brake
- Suspension: HDSS (9700 Hutch-Style)
- Tires: ST215/75R17.5 Load Range H
- Wheel: Dually 6.75×17.5 Rim (8 on 275mm Pattern)
- Deck: 2″ Oak
- Lights: L.E.D. Stop, Tail, & Turn
- Vehicle Plug: 7- Way RV w/ Breakaway & SnapNSeal
- Paint Prep: 3- Stage Clean-Up & Prime Coat
- Paint: Durable High Solids Acrylic Enamel
- Dimensions: 10,100# – 33′
