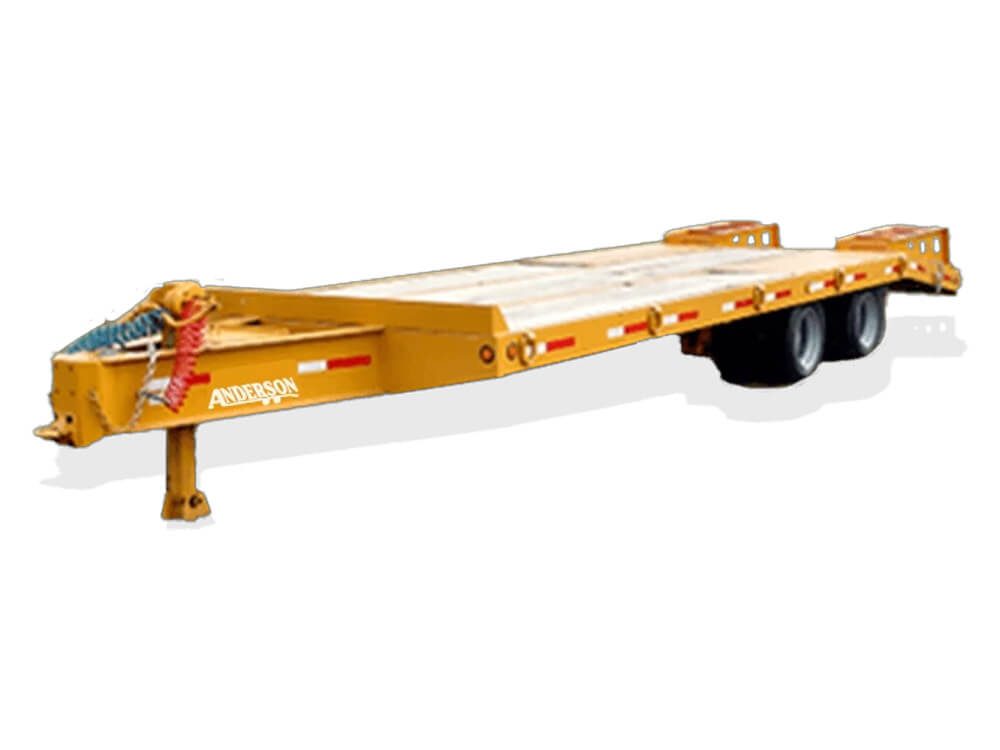

Anderson 20T Tagalong Commercial Series
Description
Anderson 20T Tagalong Commercial Series
- G.V.W.R. : 45,000#
- G.A.W.R. : Each Axle – 25,000#
- Coupler: Adjustable 3-Position Pintle Ring
- Safety Chain: 7/16″ Grade 70 w/ Hooks
- Jack: Dual Bolt-On 25K 2-Speed
- Frame: 14″ Structural I-Beam
- Frame Style: Pierced Frame Construction
- Crossmembers: 5″ Channel w/ 16″ Centers
- Side Rails: 8″ Channel w/ D-Rings
- Ramps: 5′ HD-EZ Lift Runner Style w/ Spring Assist & Lockable Ramp Bars
- Axle: (2) 25,000# Oil-Bath Electric Brake
- Suspension: Heavy Duty 9700 Hutch Series
- Tires: ST215/75R17.5 Load Range H
- Wheel: Dually 6.75×17.5 Rim (8 on 275mm Pattern)
- Deck: 2″ Oak
- Lights: L.E.D. Stop, Tail, & Turn
- Vehicle Plug: 7 – Way RV w/ Breakaway & SnapNSeal
- Paint Prep: 3- Stage Clean-Up & Prime Coat
- Paint: Durable High Solids Acrylic Enamel
- Dimensions: 6,200# – 25′, 6,400# – 30′, 6,750# – 33′, 6,950# – 35′, 7,500# – 40
- Standard Features: 5′ Wood-Covered Dovetail, ABS on One Axle, Lockable Tongue Mounted Toolbox w/ Gas Shocks, Full-Length Diamond Plate Drive-Over Fenders
