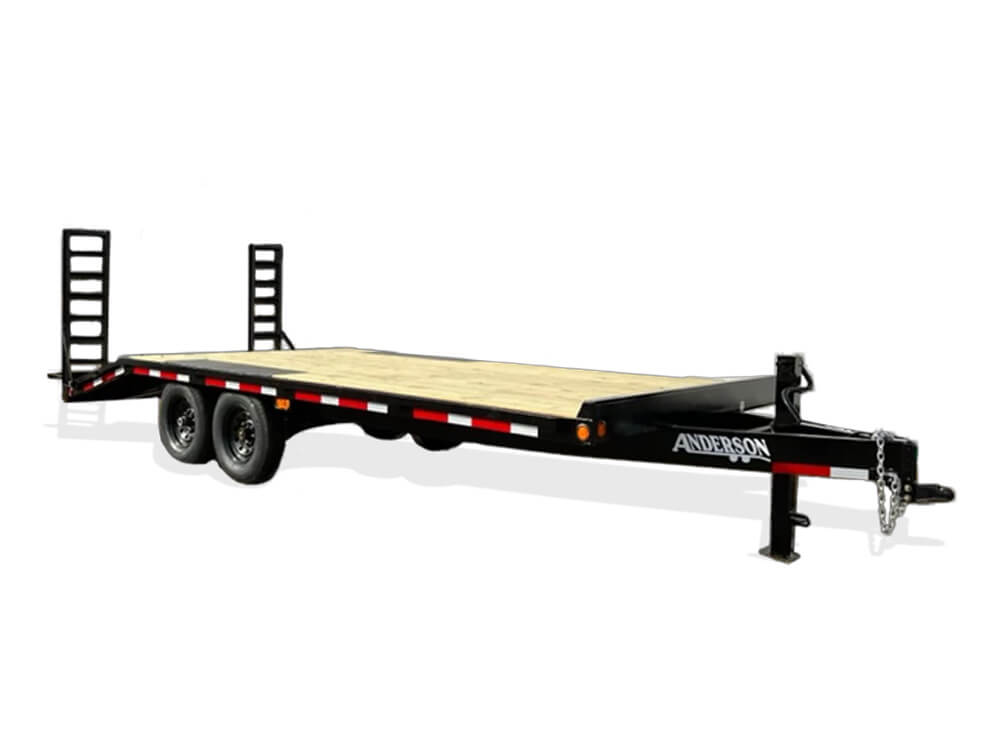

Anderson 7T Tagalong Workhorse-X Series
Description
Anderson 7T Tagalong Workhorse-X Series
- G.V.W.R. : 14,000#
- G.A.W.R. : Each Axle – 7,000#
- Coupler: Adjustable 3-Position Pintle Ring
- Safety Chain: 3/8″ Grade 43 w/ Hooks
- Jack: Dual Bolt-On 10K Side Wind Drog Leg
- Frame: 12″ Structural I-Beam
- Frame Style: Pierced Frame Construction
- Crossmembers: 3″ Channel w/ 16″ Centers
- Side Rails: 6″ Channel w/ Rub Rail
- Ramps: 5′ Heavy Duty X-Ramps w/ 2-Way Spring Assist & Locking Ramp Bars
- Axle: (2) 7,000# Cambered Electric Brake
- Suspension: Multi-Leaf Double-Eye Spring
- Tires: ST235/80R16 Load Range E
- Wheel: 16″ 8-Bolt White Spoke (8 on 6.5 Pattern)
- Deck: 2″ Pressure Treated Pine w/ D-Rings
- Lights: L.E.D. Stop, Tail, & Turn
- Vehicle Plug: 7 – Way RV w/ Breakaway & SnapNSeal
- Paint Prep: 3- Stage Clean-Up & Prime Coat
- Paint: Durable High Solids Acrylic Enamel
- Dimensions: 5,650# – 25′, 5,950# – 30′
- Standard Features: 5’ Self-Cleaning Dovetail, Sealed Wiring Harness, Lockable Tongue Mounted Toolbox, Full-Length Diamond Plate Drive-Over Fenders
