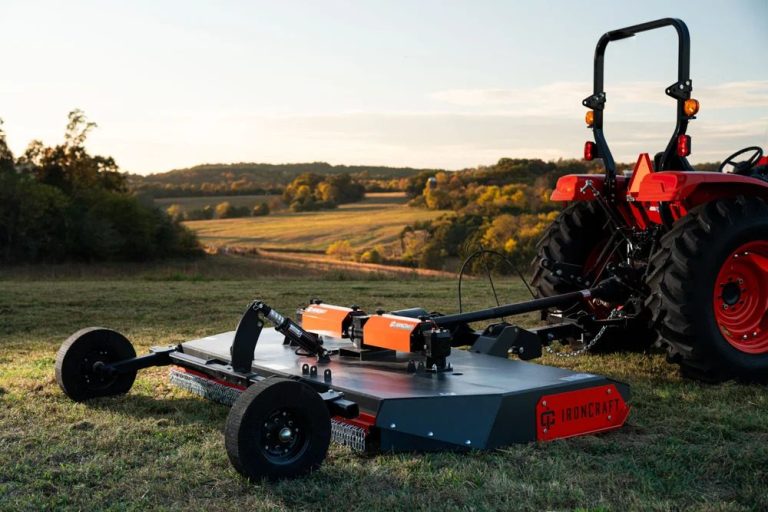

IronCraft 2400 Series: 96″ Heavy-Duty Rotary Cutter (8′ Model) W/CHAINS

IronCraft 2400 Series: 96″ Heavy-Duty Rotary Cutter (8′ Model) W/CHAINS

Redefine your land management capabilities with the IronCraft 2400 Series Cutter. Engineered where high-performance engineering meets rugged durability, this heavy-duty rotary cutter is designed for an unmatched debris-clearing experience.

Featuring an updated splitter box, the 2400 series seamlessly manages tip speeds to ensure a consistent, controlled cut across varying widths. Whether you are clearing thick brush or maintaining expansive pastures, the combination of counter-rotation technology and 4″ full uplift blades delivers professional-grade cut quality in the most challenging conditions.

Key Performance Features

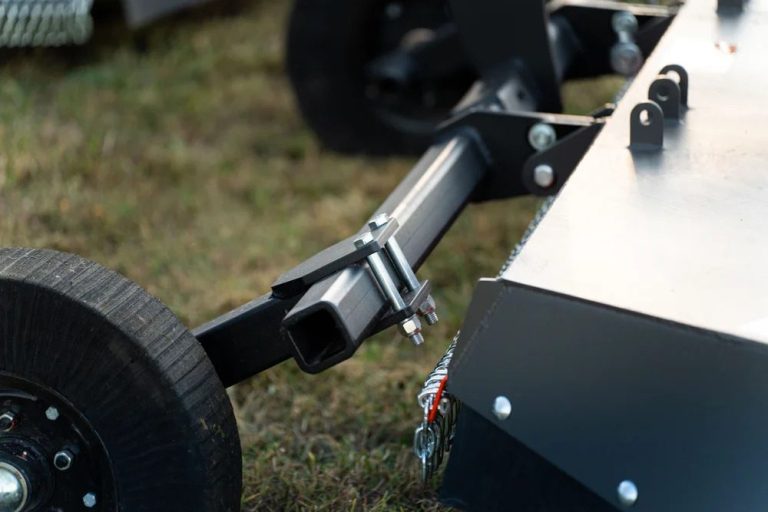

• Enhanced Cut Quality: Increased deck skirt height and adjustable tailwheel brackets allow for superior material flow.
• Robust Construction: Built with a 10-gauge deck and 11″ side bands for long-term structural integrity.

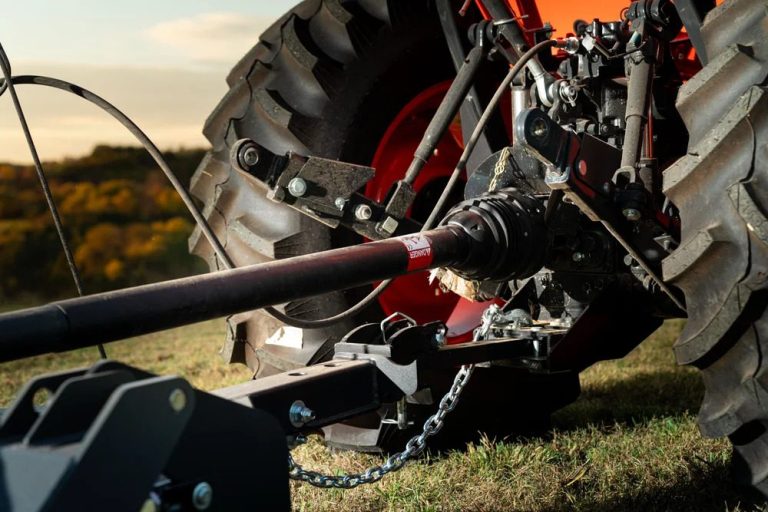

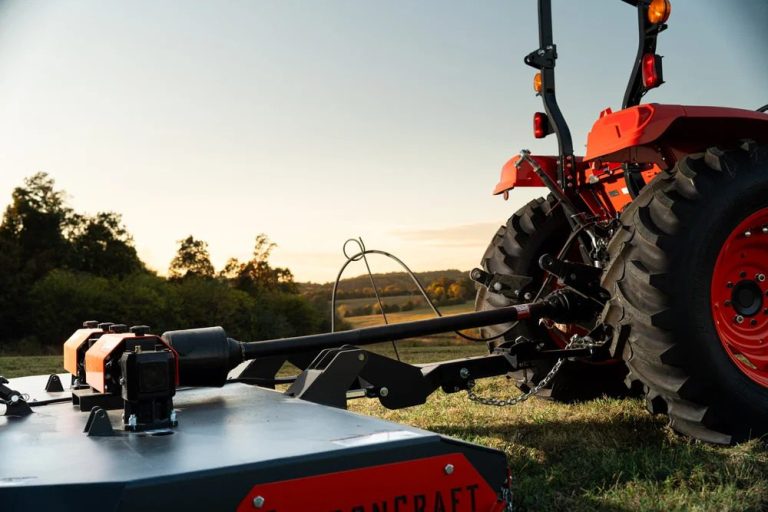

• Reliable Power: Equipped with a 125 HP-rated gearbox and Series 5 PTO drive shaft with slip clutch protection.

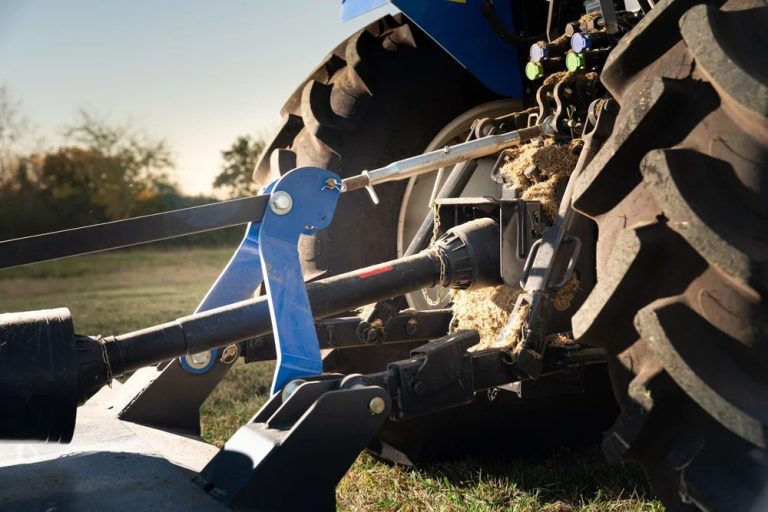

• Versatile Hitching: Compatible with Cat 1 & 2 hitches, available in both lift and pull configurations.

Technical Specifications

General Dimensions & Capacity

• Working Width: 120″ (10′ Dual Spindle)
• Cutting Capacity: Up to 3″ diameter brush
• Cutting Height: Adjustable from 3-1/2″ to 10″
• Weight: 1,585 lbs (Lift) / 1,680 lbs (Pull)

Drivetrain & Power Requirements

• HP Requirement: 52 minimum PTO HP
• RPM: 540 or 1000
• Gearbox Rating: 125 HP (Center) / 75 HP (Outboard)
• Warranty: 5-Year Limited Gearbox Warranty

Build & Hardware

• Deck Thickness: 10 GA Steel
• Blade Holder: 3/16″ Formed plate with 3/4″ x 2″ blade bar

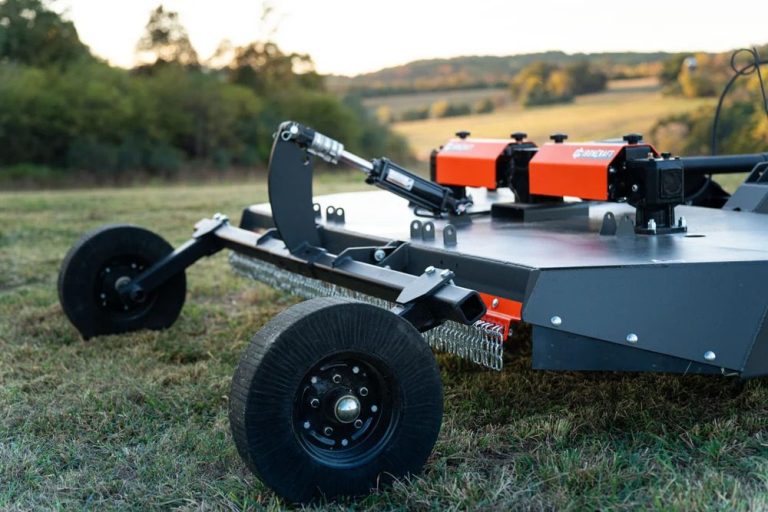

• Wheel Type: Laminated with bearing hubs
• Skid Shoes: Replaceable for easy maintenance
