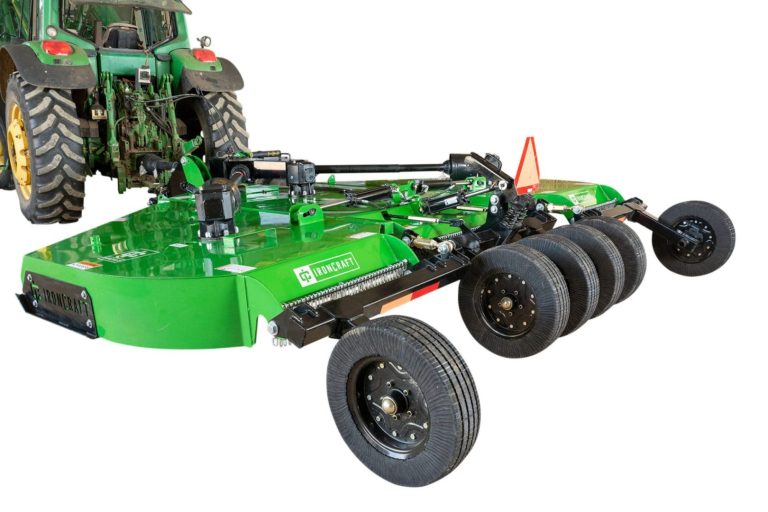

IronCraft 3515 Series: 15′ Heavy-Duty Flex-Wing Rotary Cutter 4-26″ FOAM FILLED TIRES WITH LIGHT KIT

IronCraft 3515 Series: 15′ Heavy-Duty Flex-Wing Rotary Cutter 4-26″ FOAM FILLED TIRES WITH LIGHT KIT

The IronCraft 3515 is engineered for the most demanding land management projects, providing a massive 180″ working width and unmatched structural integrity. Designed for tractors with a 60 minimum PTO horsepower, this heavy-duty cutter is built to handle thick brush and saplings up to 3.5” in diameter.

The 3515 Series stands out with its reinforced deck structure and 1/4″ wall tubing along the hinges for superior protection. Exclusive standard deck rings are included on every deck to prevent damage from bent blades, while the wing-fold hydraulic system is integrated into the center deck weldment for maximum strength.

Advanced Engineering & Cut Quality

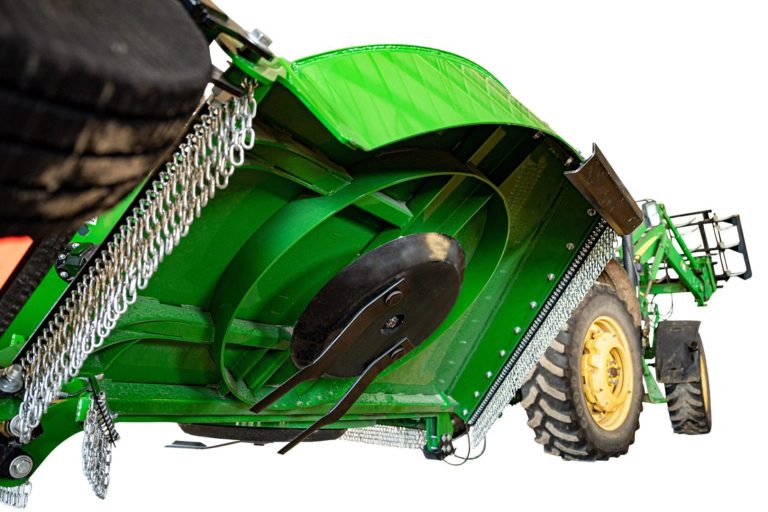

• Precision Blade Pans: Heavy 7-gauge press-formed blade pans feature a specialized design to reduce the “ripple effect,” ensuring superior rotational balance and gearbox longevity.
• Maximum Structural Integrity: Reinforced center deck weldment and heavy-duty 1/4″ x 13-1/2″ side bands provide a rigid frame for tough terrain.
• High-Capacity Drivetrain: Equipped with a 235 HP center gearbox and 190 HP outboard gearboxes to handle high-torque loads.

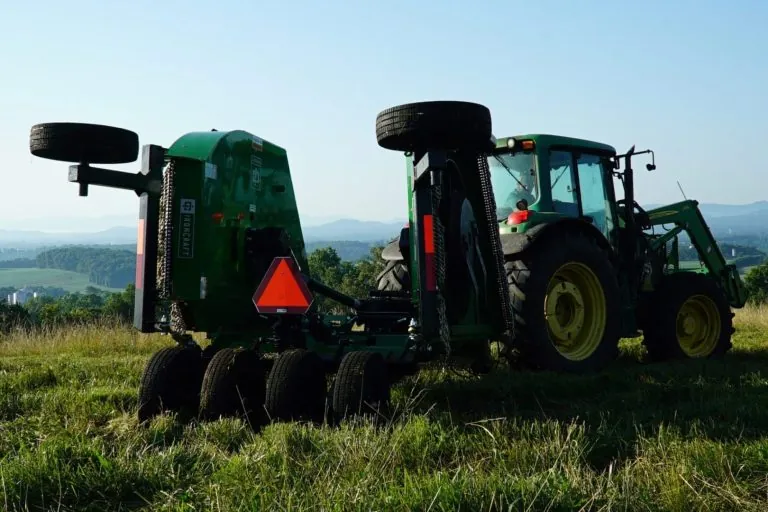

• Extreme Wing Flex: Features a wing range of 22° down to 100° up, making it ideal for steep embankments and ditch clearing.

Technical Specifications

• Cutting Capacity: Material up to 3-1/2″ diameter
• Working Width: 180″ (15 Feet)
• Transport Width: 90″ for safe road travel
• Cutting Height: Adjustable from 2″ to 15″
• Weight: 5,600 lbs with six 26″ laminated tires

Drivetrain & Build Hardware

• PTO Speed: 540 or 1000 RPM units available
• Driveline Protection: ASAE CAT 6 main PTO with slip clutch protection
• Suspension: Dual heavy-duty springs on the center tailwheel axle for smooth operation
• Blade System: 1/2″ x 4″ uplift blades with a 6″ overlap for a clean, consistent cut
• Hitch: Swivel pivot self-leveling hitch for improved towing stability

Safety & Warranty Information

• Gearbox Warranty: 5-Year Limited Warranty
• Deck Rings: Included as standard equipment to protect the mower deck

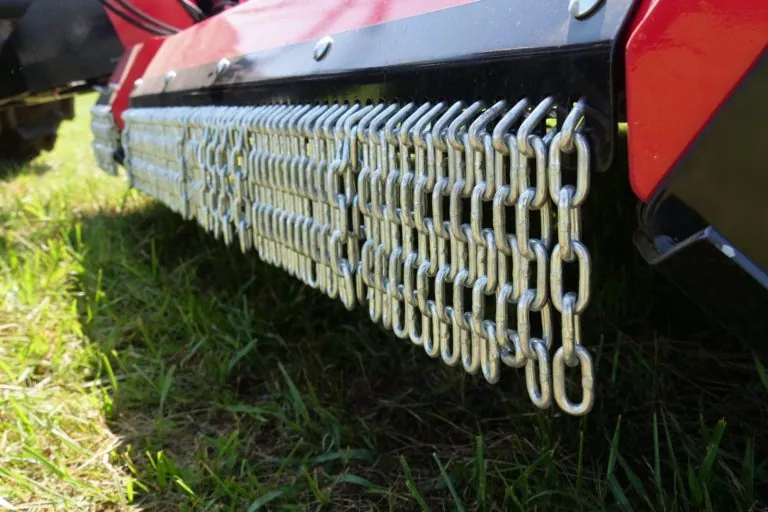

• Standard Guarding: Single row safety chains and safety tow chain included

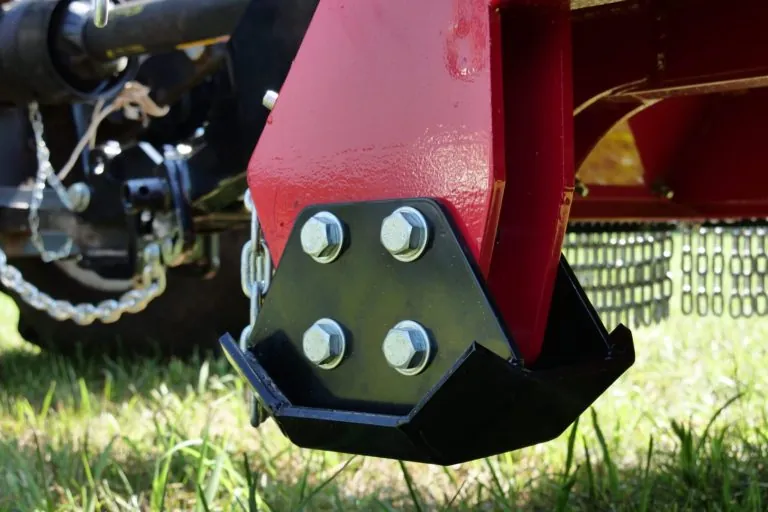

• Maintenance: Replaceable skid shoes for easy serviceability
